半岛最南端海域的Changseon岛上正在大力发展度假旅游产业，“Southcape Owner’sclub ”应运而生。这个复合 群妥帖的布局在群岛变化剧烈的山地地形上。

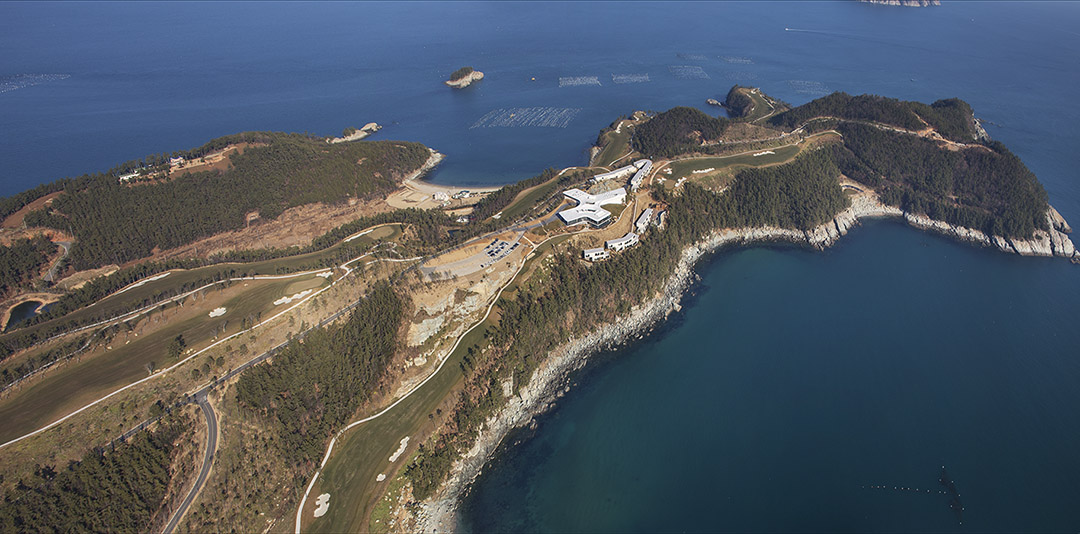

Located on Changseon Island in Namhae Province, at the southern tip of the Korean peninsula, is a resort development – the Southcape Owner’s Club – with several complexes that are strategically positioned throughout the dramatic topography of the archipelagic region.

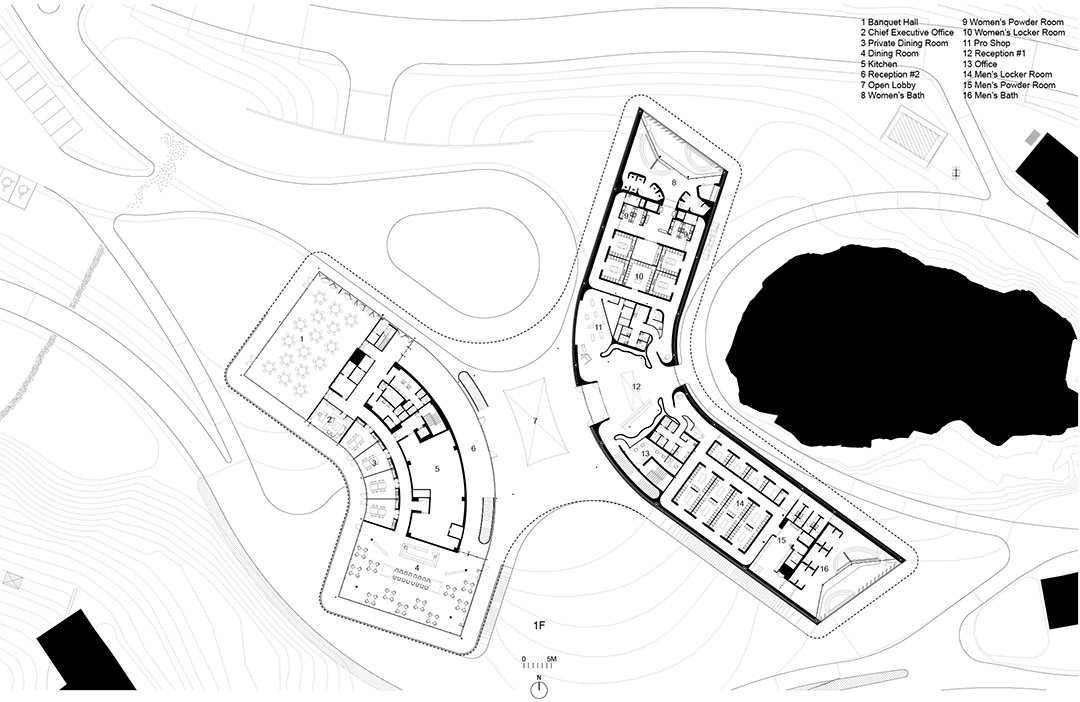

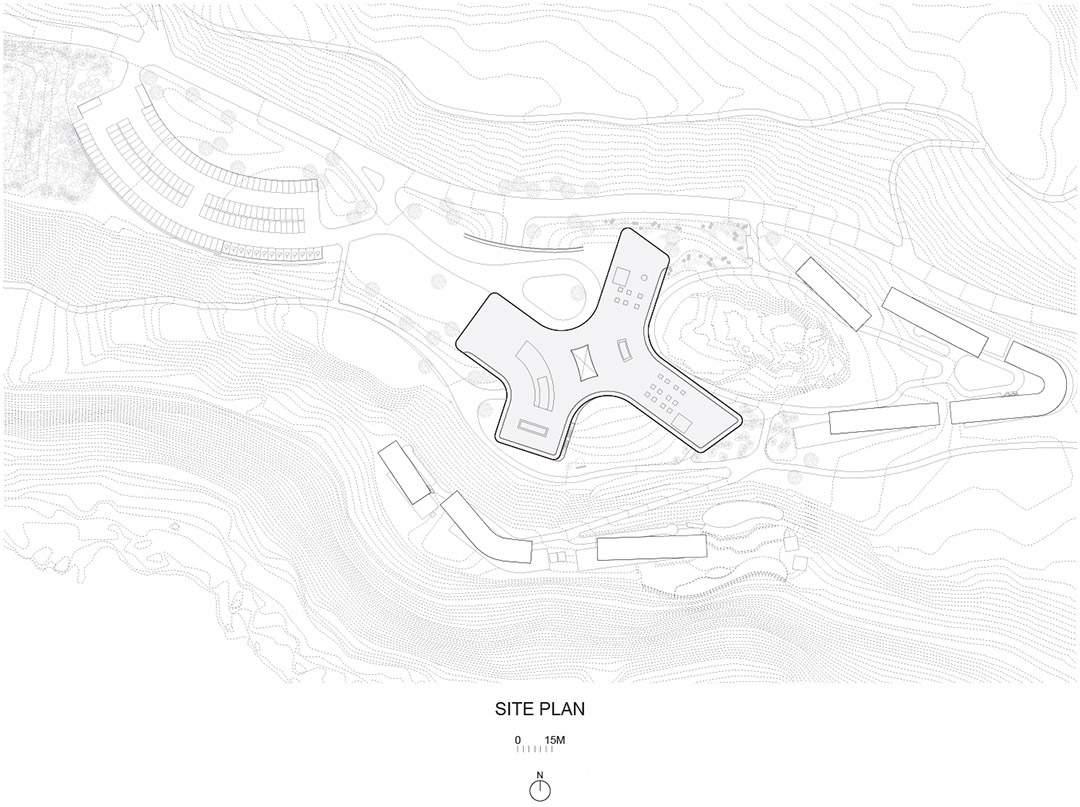

The apex of the resort is the Clubhouse, which in plan is essentially a pair of bars bending outward. The two curvatures of the building engage with specific moments of its immediate surroundings, hugging the existing context – the rocky hill to the east, and the vista out toward the cape to the west. Simultaneously, the composition of the curved masses allow the building to also embrace what is to the north and south – a grand entry round-about, and a remarkable ocean view to the south, respectively. An open central zone is formed, anchoring the entire complex in a

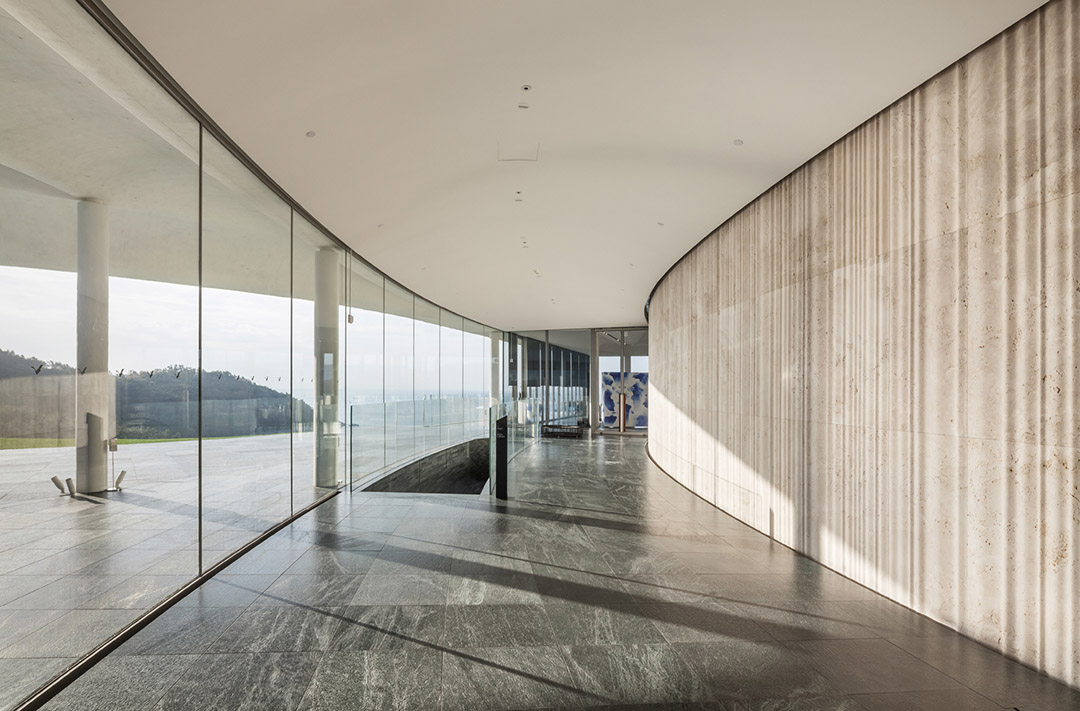

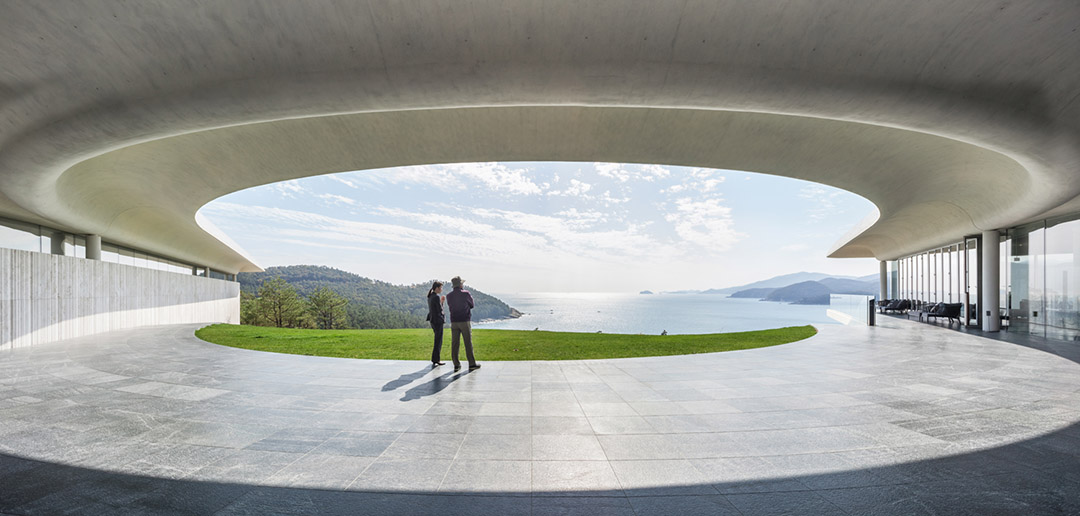

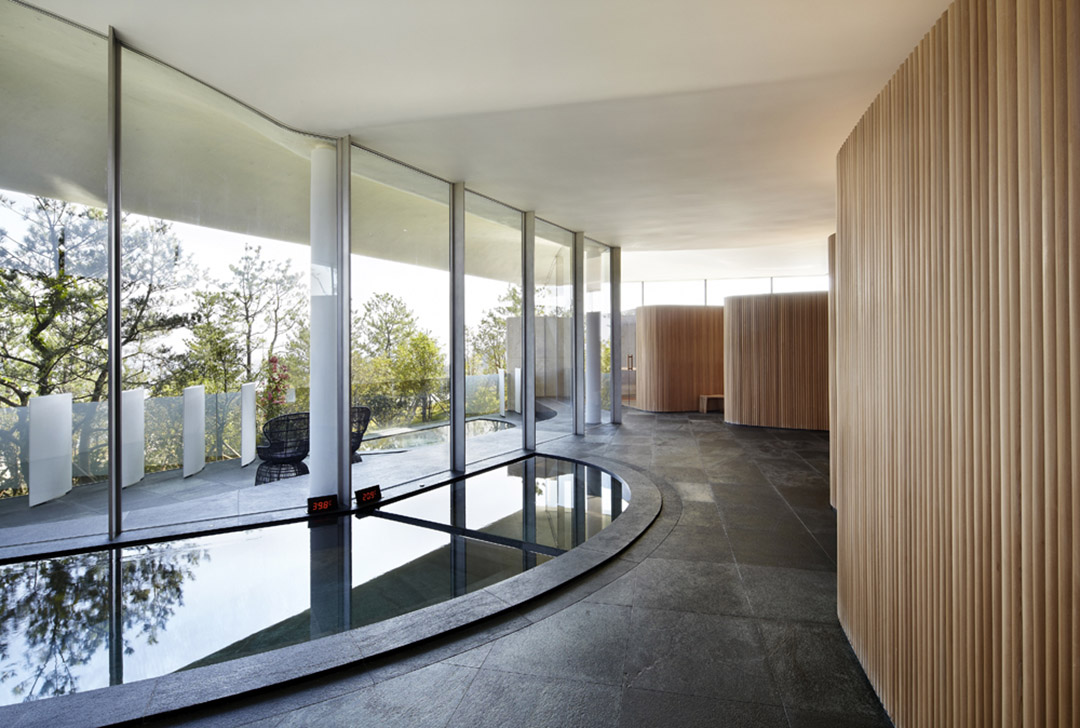

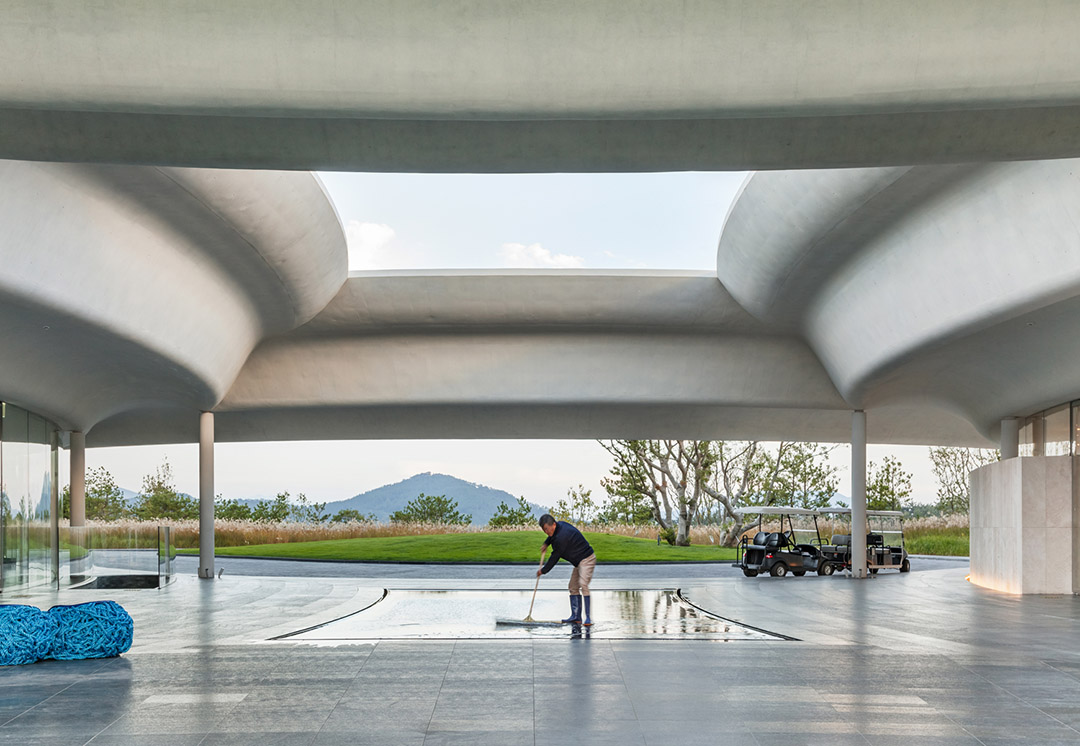

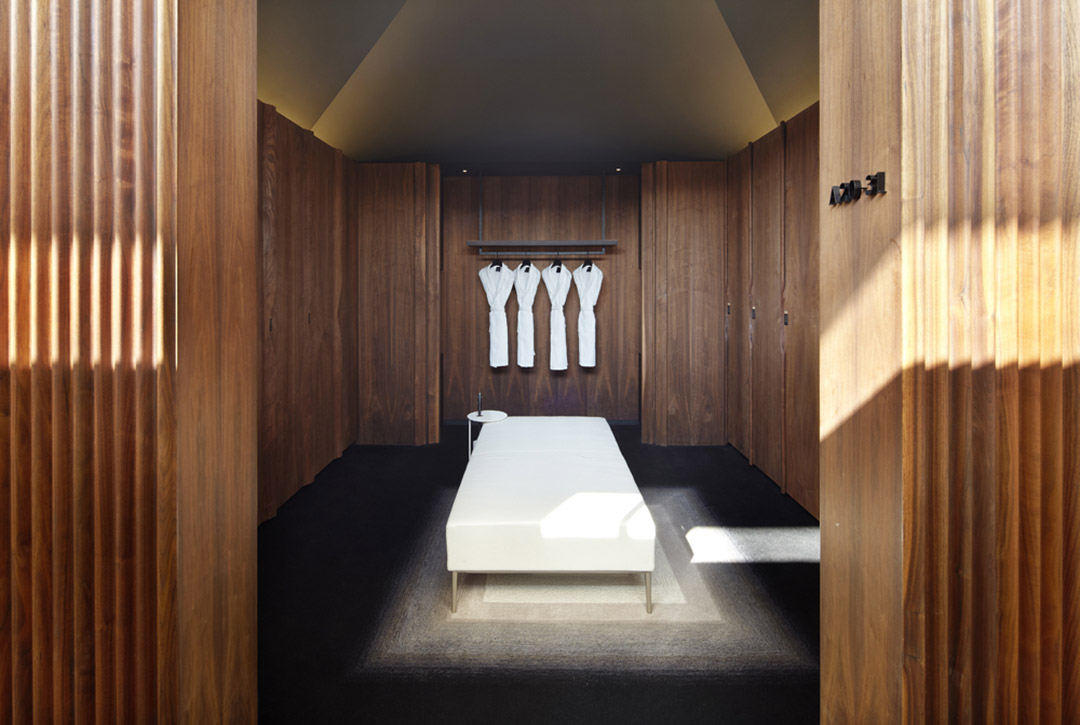

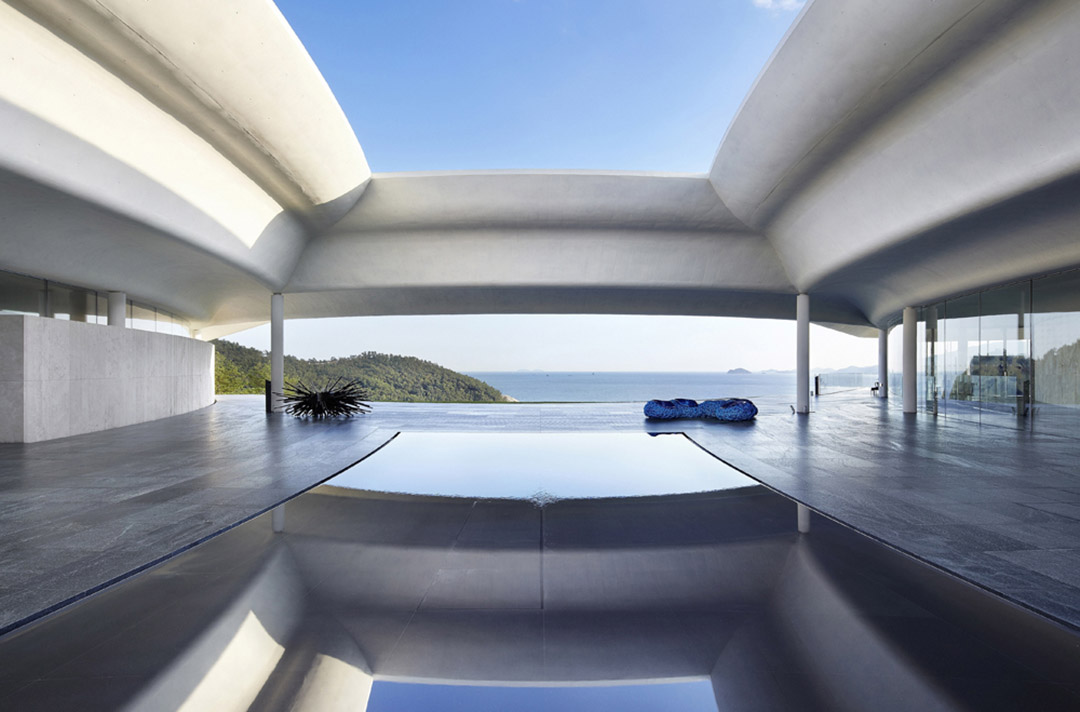

culmination of an impressive entrance patio under a sculptural open-roof, a reflection pool directly below, and a spectacular framed view of the South Sea. To the east are the more private spa facilities, and to the west, the more public restaurant, private dining, and event facilities. There is a contrast that takes place, not only programmatically, but also in materiality – solid vs. transparent. The spa area is mostly designed as a closed mass, with a slightly open 1m clerestory running along the entire length of the solid exterior walls and roof, progressing to a fully open release at both ends of the volume, which allows for an outdoor terraced bath for both the men’s and women’s spas with views out to the South Sea and waters beyond the landscape to the north. The dining areas are all glass-clad with extended perimeter terraces to all sides, offering a sense of openness out to the waters and landscape.

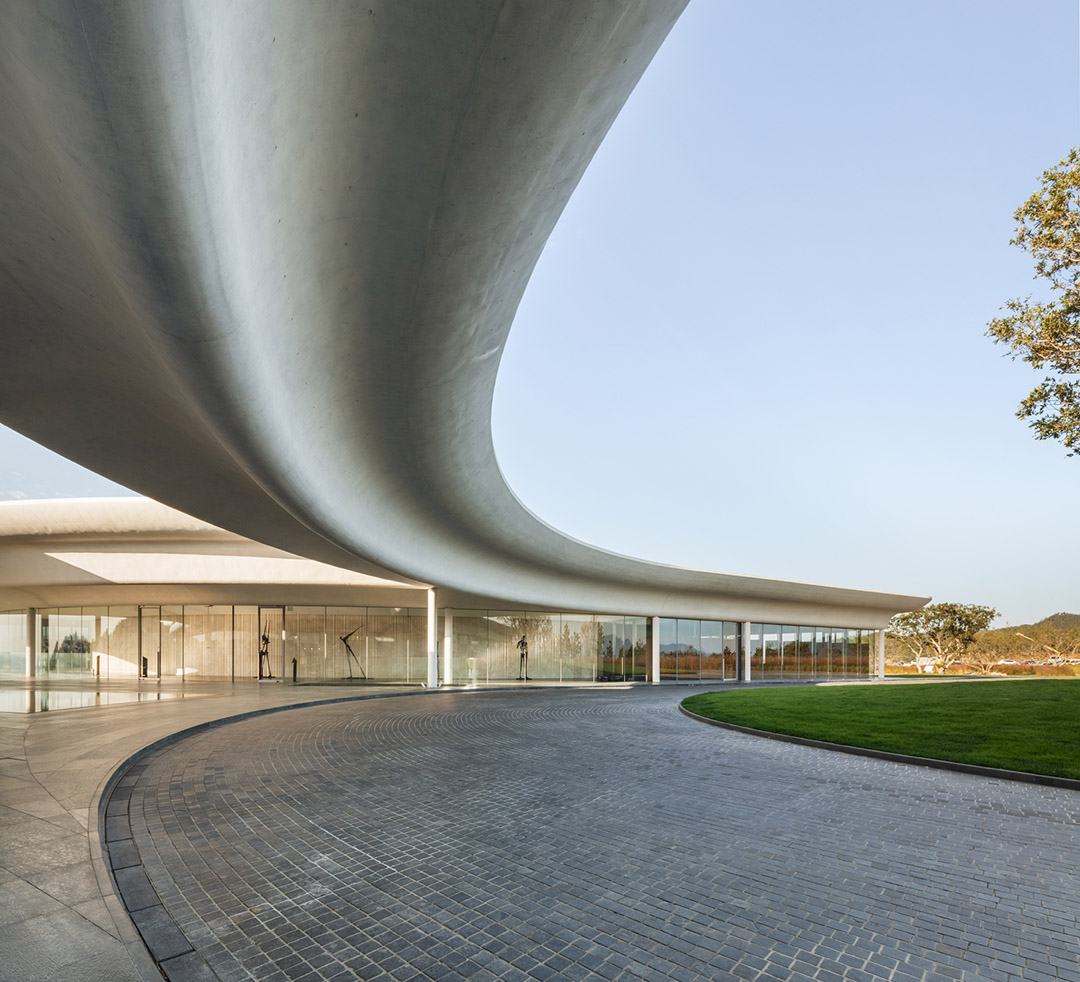

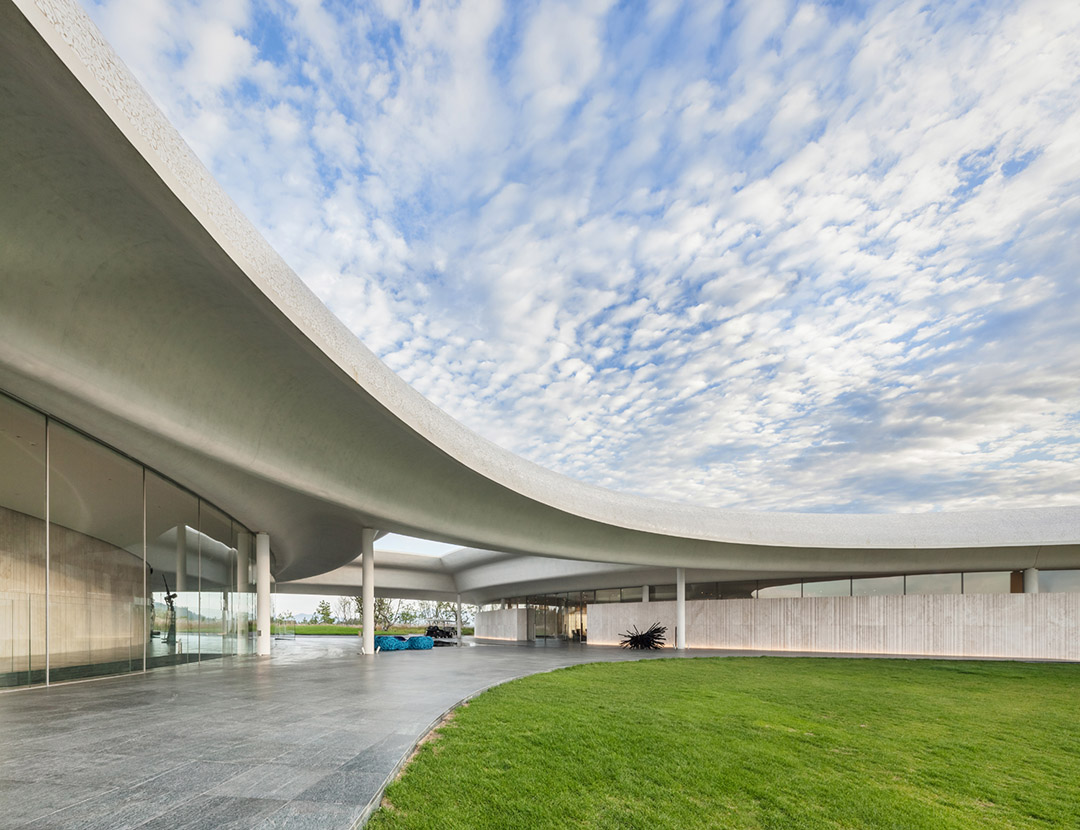

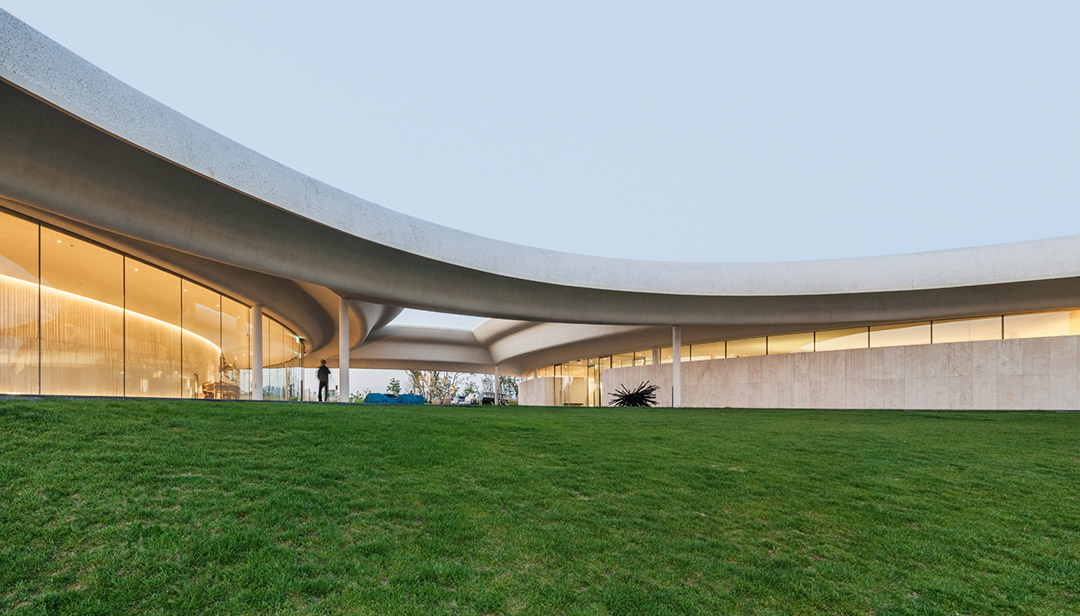

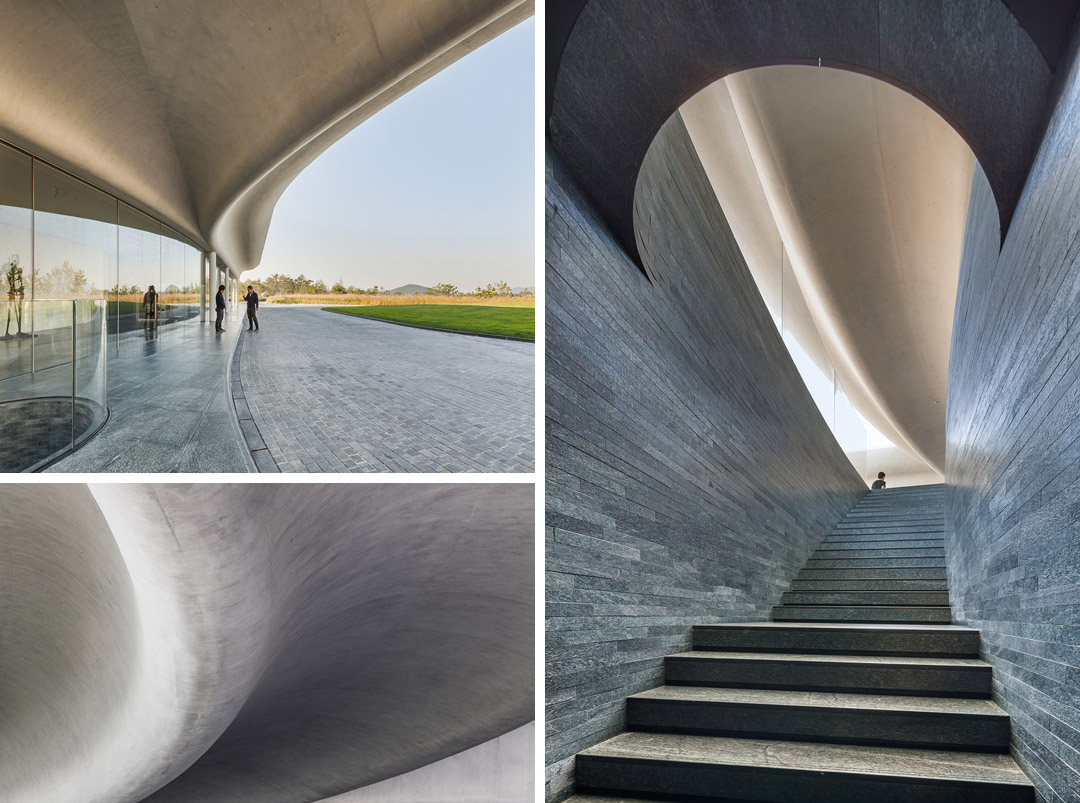

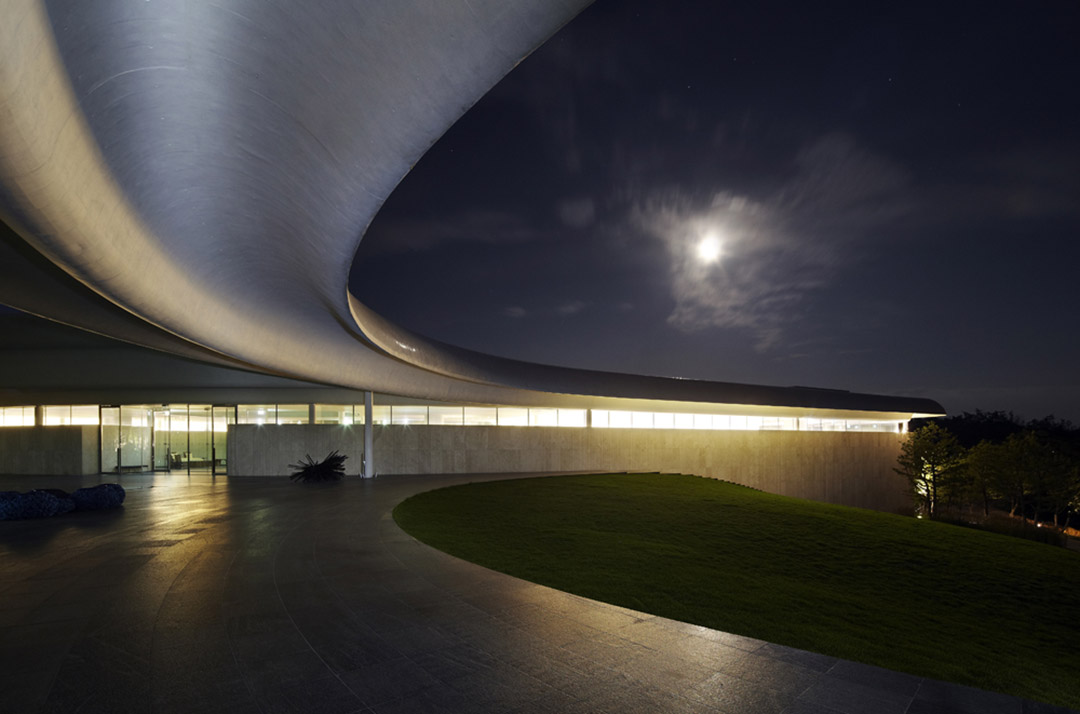

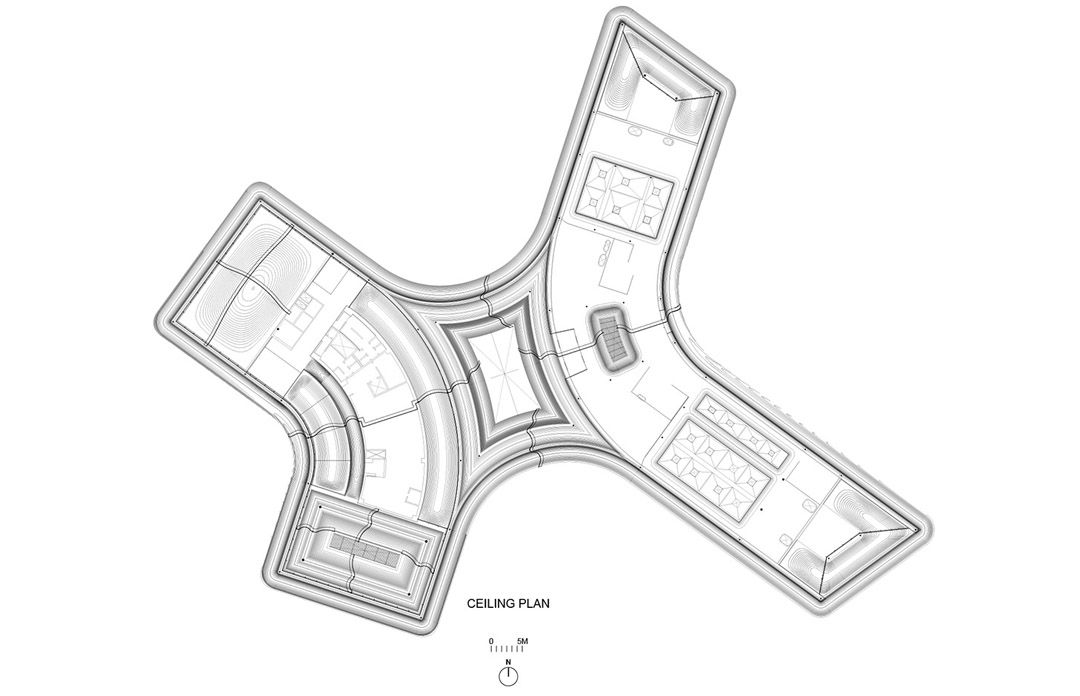

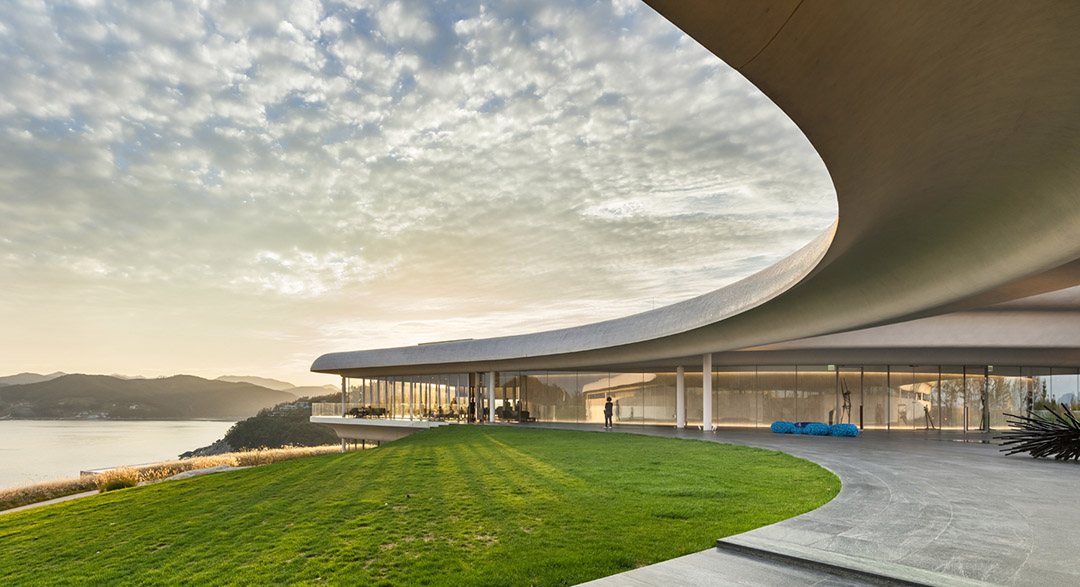

The sculpted roof of the Clubhouse is derived through a geometric rigor driven by the systematic structural organization, which is a response to the three-dimensionality of the natural context. The depth of the curved steel beams are revealed, as if it were a vacuum-formed white concrete membrane, where a series of vaulted concrete canopies ultimately form an x-shaped, exploded circle in plan. The 3m canopies that outline the entire roof not only function as a shading device, but follow the overall architectural language, as the edge conditions change in direction, up and down, from the north to the south side of the building. It adds to the sensuous movements that are portrayed throughout the building.

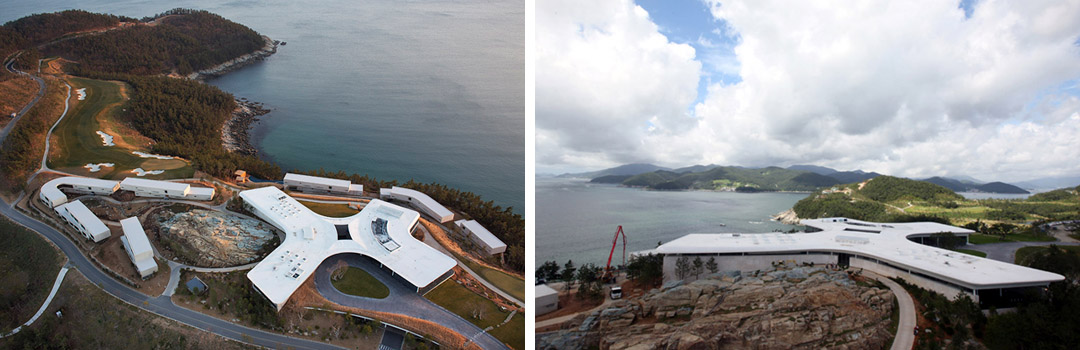

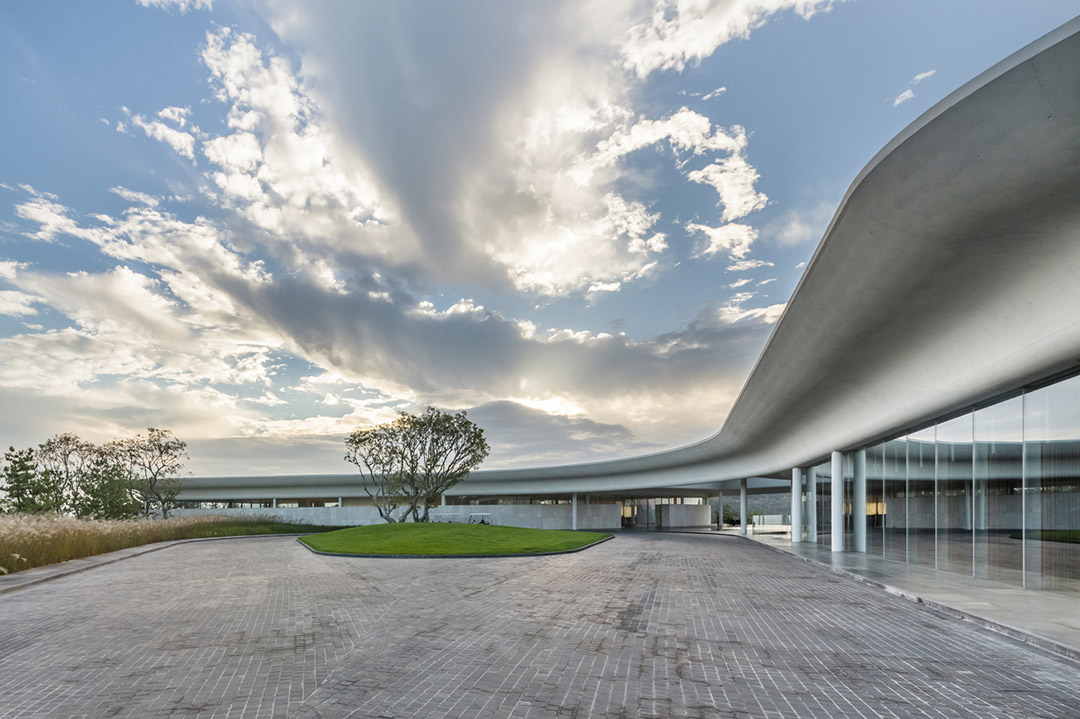

From a distance, whether from the deck of a boat afloat the South Sea, or from a distance in the rolling landscape of the island, the appearance of the Clubhouse read horizontal, demure, and subtle. However, once in and around the Clubhouse, one begins to have a dramatic experience through the perspectival exaggerations and the views framed by the illustrious canopy edges. The Southcape Owner’s Club Clubhouse is a seamless, continuous, and complete object in nature, with a shape in plan that creates a complex relationship with the surroundings, in rhyme with the rias coastline of the archipelagos that are unique to this region.
Southcape Owner’s Club: Clubhouse
Design Period: 2009.01~2012.01
Construction Period: 2011.10~2013.11
Type: Sports, Golf Clubhouse
Site Area: 23,066.16㎡
Site Coverage Area: 7,955.98㎡
Total Floor Area: 15,101.56㎡
Building-to-Land Ratio: 34.49%
Floor Area Ratio: 20.39%
Building Scope: B2, 1F
Structure: RC, SC
Exterior Finish: White Exposed Concrete, Serpentino Classico, Travertine Navona, T33.52 Low-iron/Low-E laminated and Insulated Glass, Broken Porcelain TileInterior Finish: Serpentino Classico, Travertine Navona, Solid Teak Wood, Venetian Stucco
Minsuk Cho, Kisu Park, Junkoo Kang, Younkyoung Shin, Bumhyun Chun, Wonbang Kim, Yuseok Heo, Sungpil Won, Junghye Bae, Minho Hong,
Changwoo Choi, Eunju Choi, Kyungsik Kim, Joshua Ovenden, Nickolas Urano, Joungwon Lee, Vin Kim, Taehoon Hwang, Sangkyu Jeon,
Joonhee Lee, Soohyun Jin, Sojung Lee, Sangjoon Kwak, Songmin Lee, Dongwon Yoon, Kyenyong Kwak, Z-U Kim, Kyungmok Park, Suzan
Babaa, Irene Matteini, Ji Soo Han, Guo Xiang
Structural Engineer: Thekujo
MEP Engineer HANA Consulting & Engineers
Korean Geo-Consultants Co. Ltd.
Lighting Engineer: Newlite
Landscape design: Seo Ahn Landscape
Construction: HanmiGlobal Co. Ltd.
Client: Handsome Corp.
项目来源: Mass Studies
