North Zealand区计划于2020年，在靠近希勒罗德城的绿色景观中为当地310000名居民建立一座造价38亿 克朗，面积超过124000平方米的现代化医院。The citizens of North Zealand in 2020 have a new and modern hospital at approx. 124,000 m2 to be built in green surroundings close to Hiller?d city for the area’s 310,000 citizens, with a budget running to DKK 3.8 billion.
关于医院的设计构想，师期望创造一个与附近腓特烈堡宫具有同等标示意义的 体。医院 与自然环境融合，为患者提供一个安全的治疗环境，为医生提供一个舒适的工作环境，为居民提供一个绿色的休闲环境。

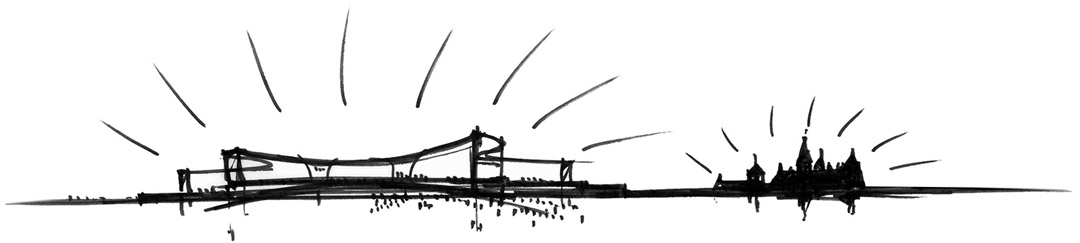

The idea of the new North Zealand hospital has been to create a landmark in line with the nearby Frederiksborg Castle – a hospital where architecture and nature merge and form a safe environment for patients, a super functional and attractive workplace and a green recreational haven for all citizens in the area.

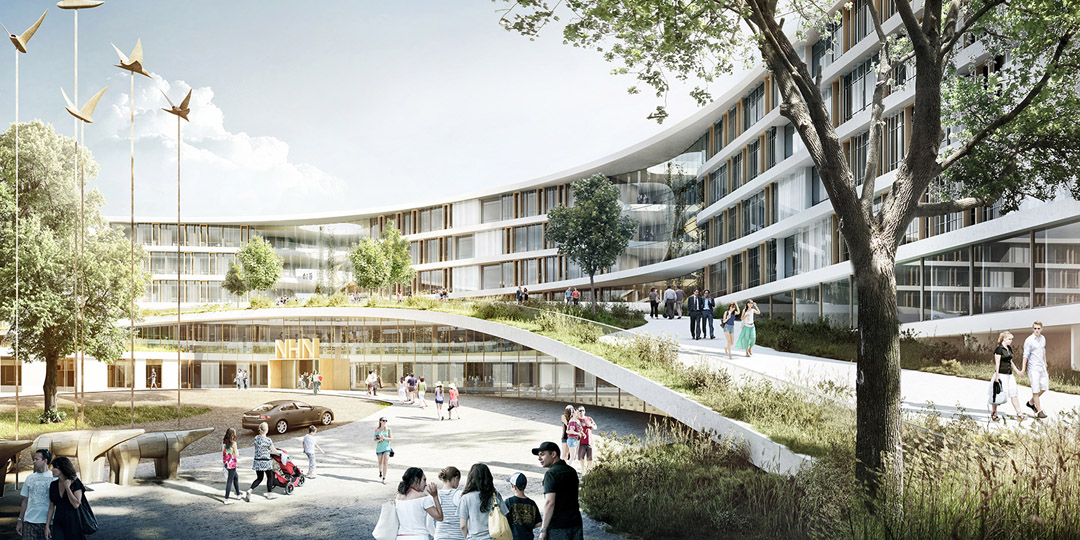

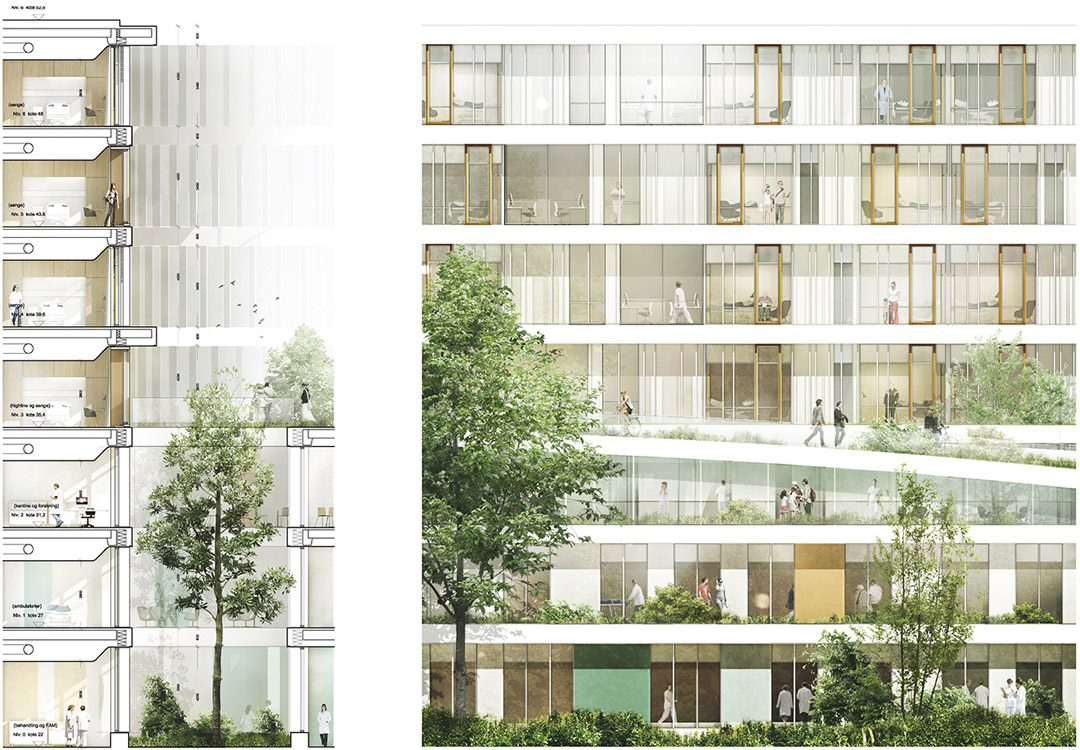

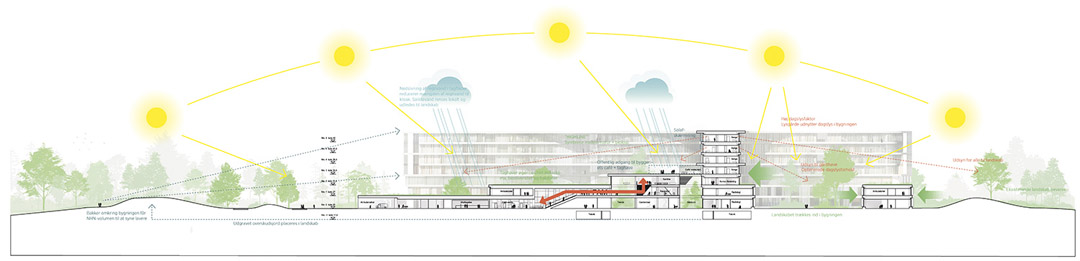

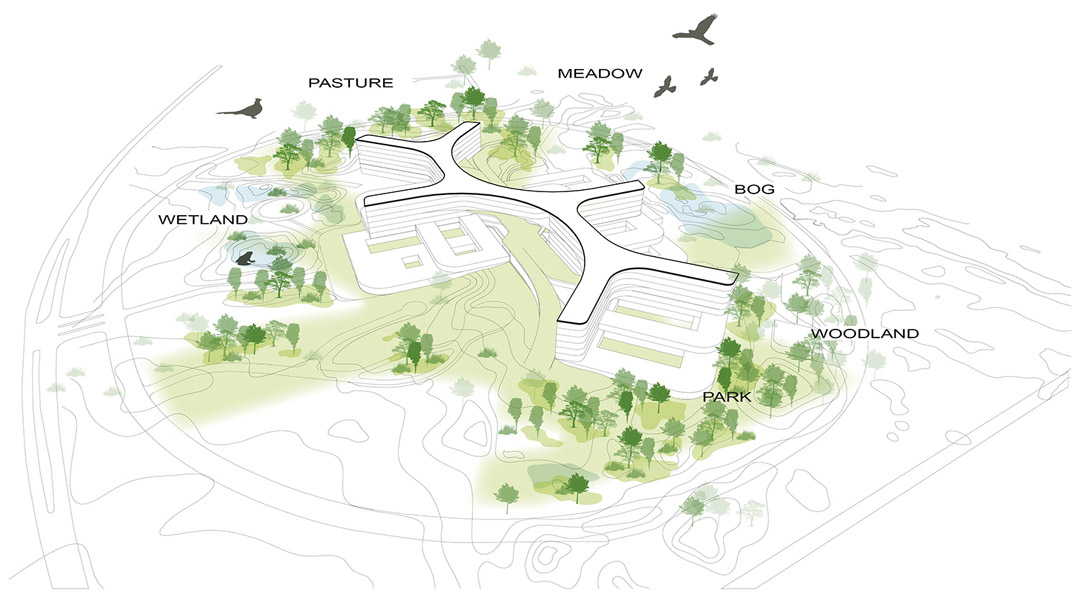

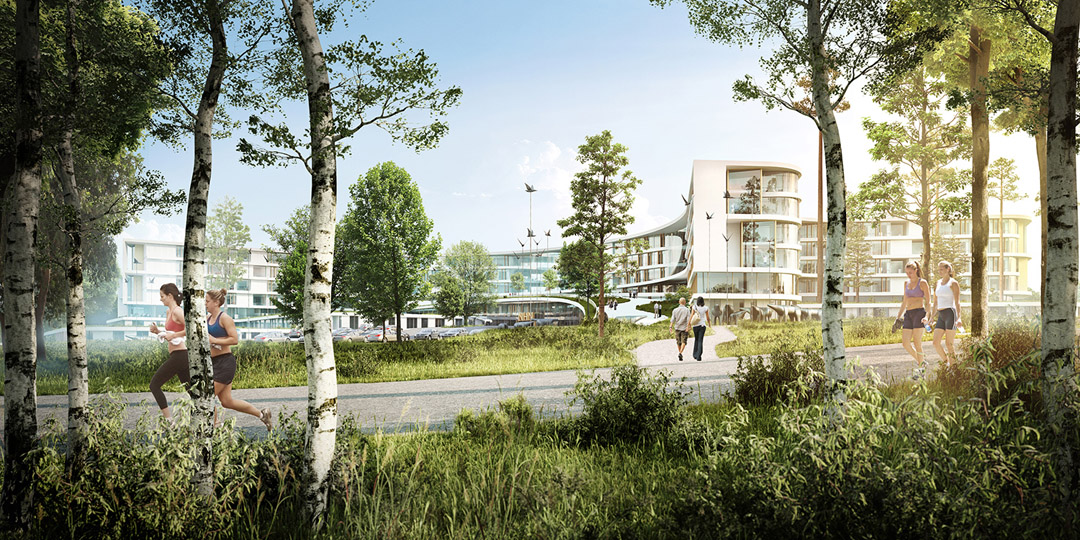

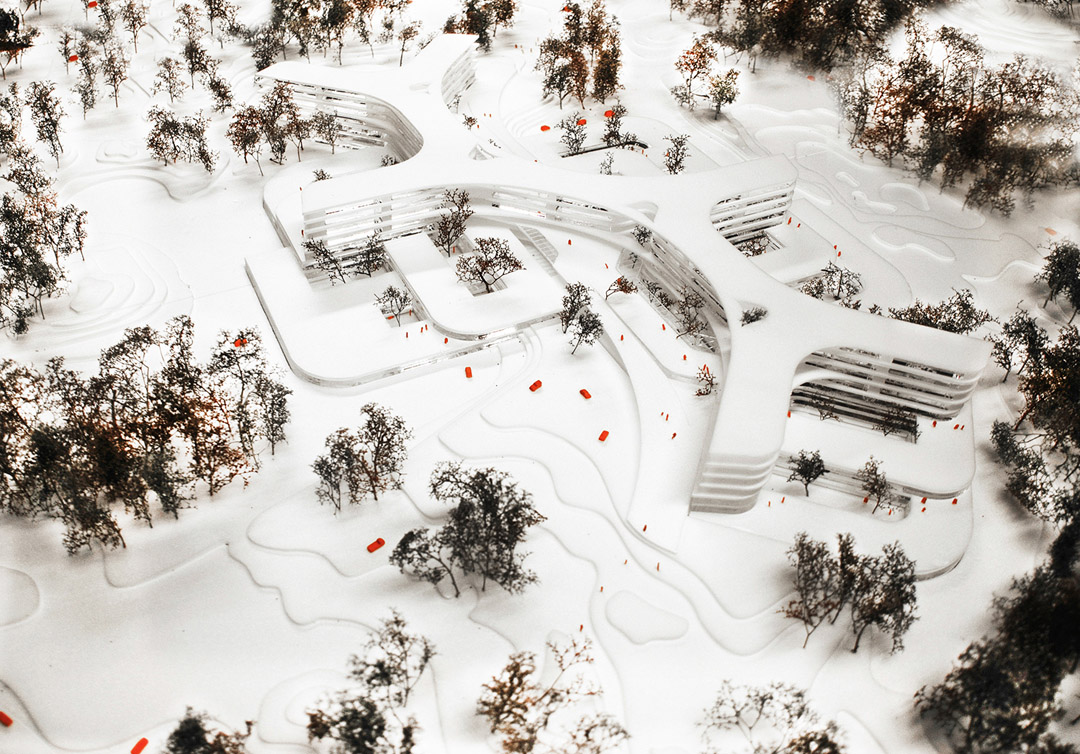

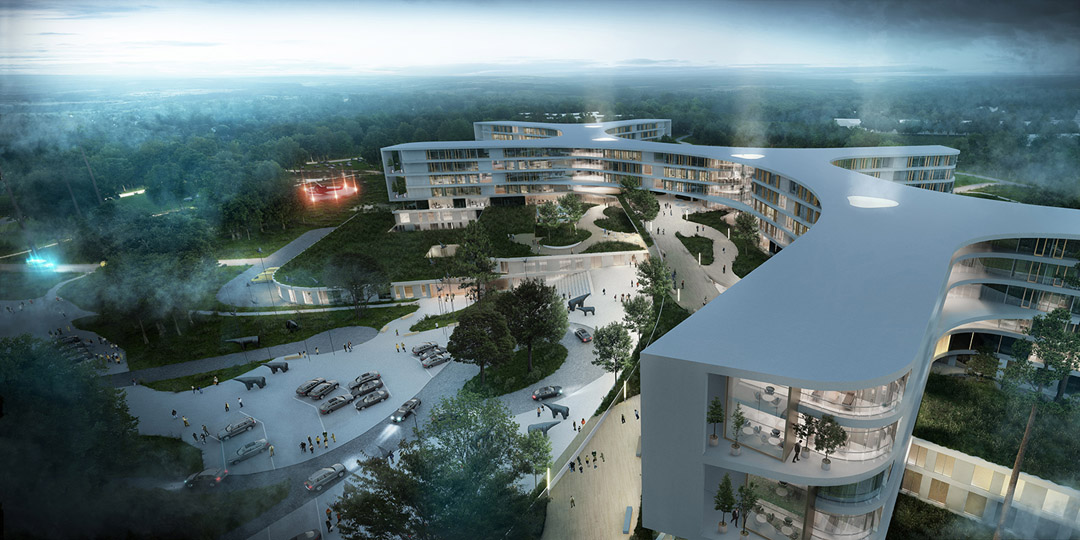

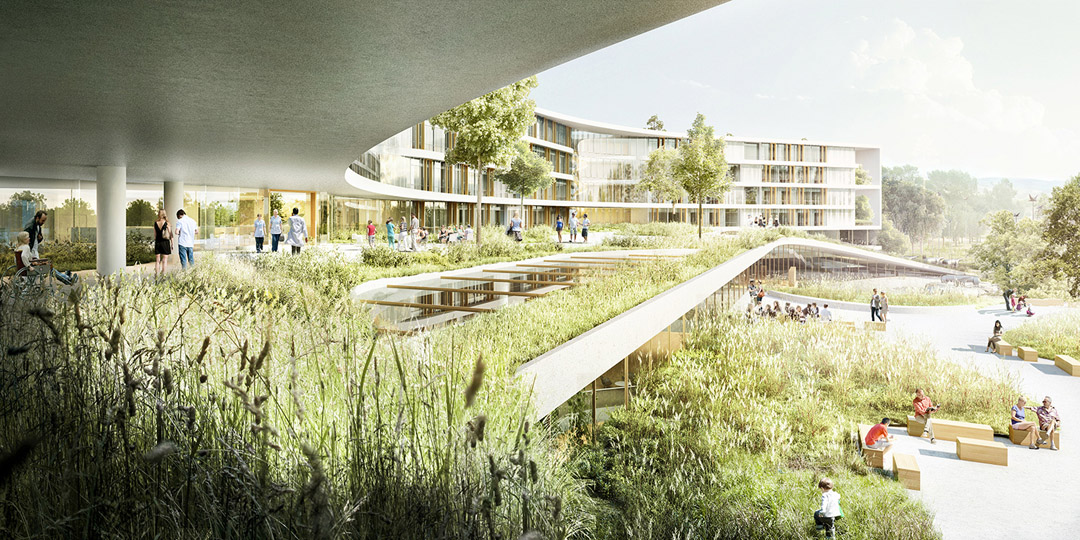

The Hospital grows out of the landscaped woodlands, and consistently brings people close to nature both inside and out, to create a healing architecture focused on the patient. The architectural expression is therefore also based on an organic, soft and humane design. Treatment buildings with courtyards and landscaped gardens form a green base for the slim bed wards that rise above the hospital’s accessible green roofs.

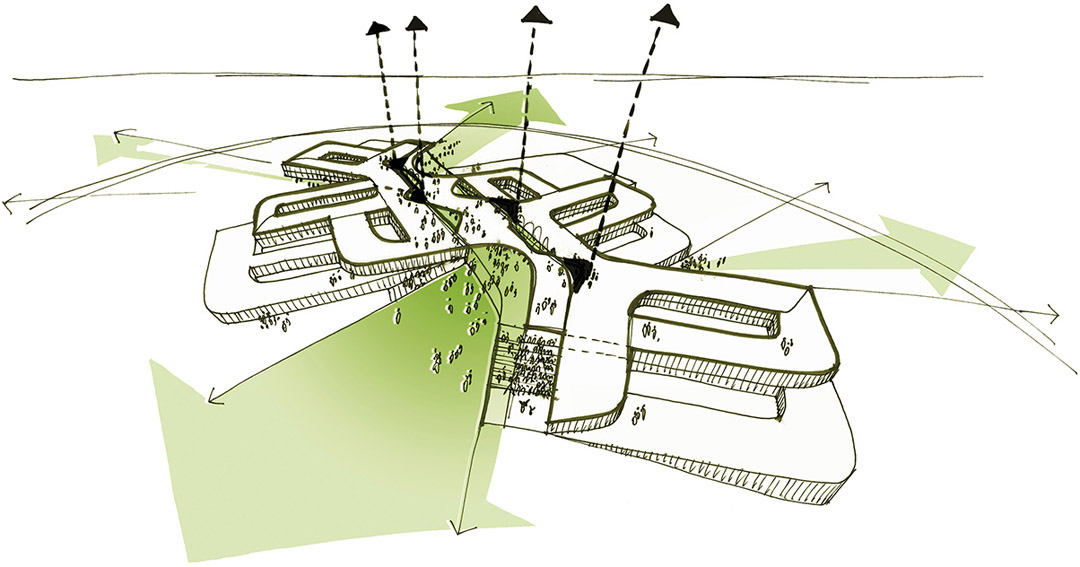

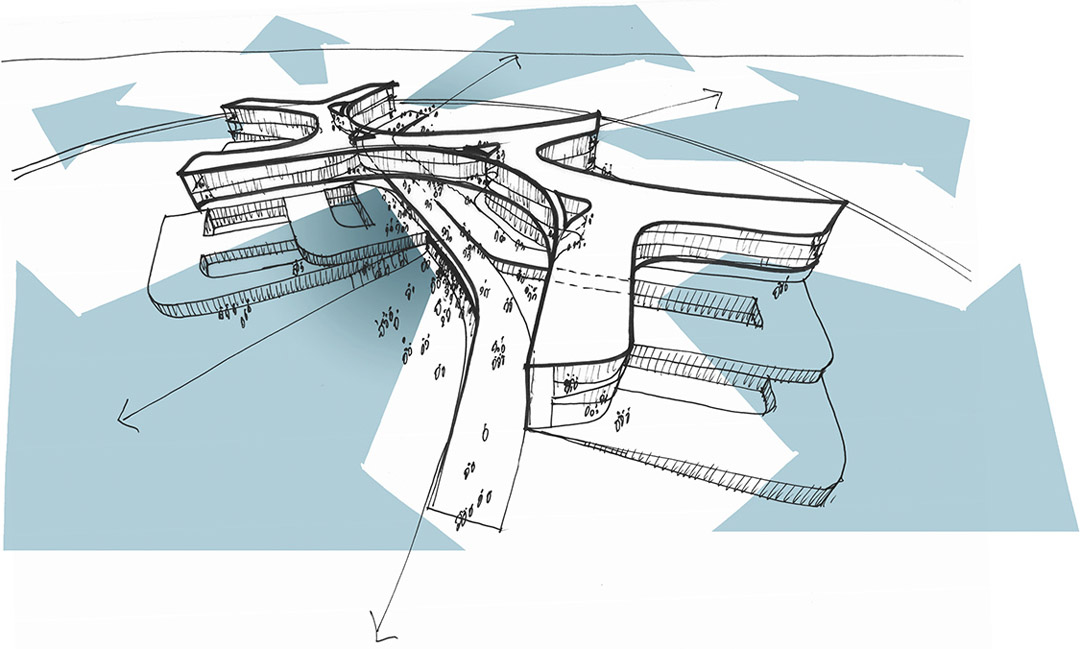

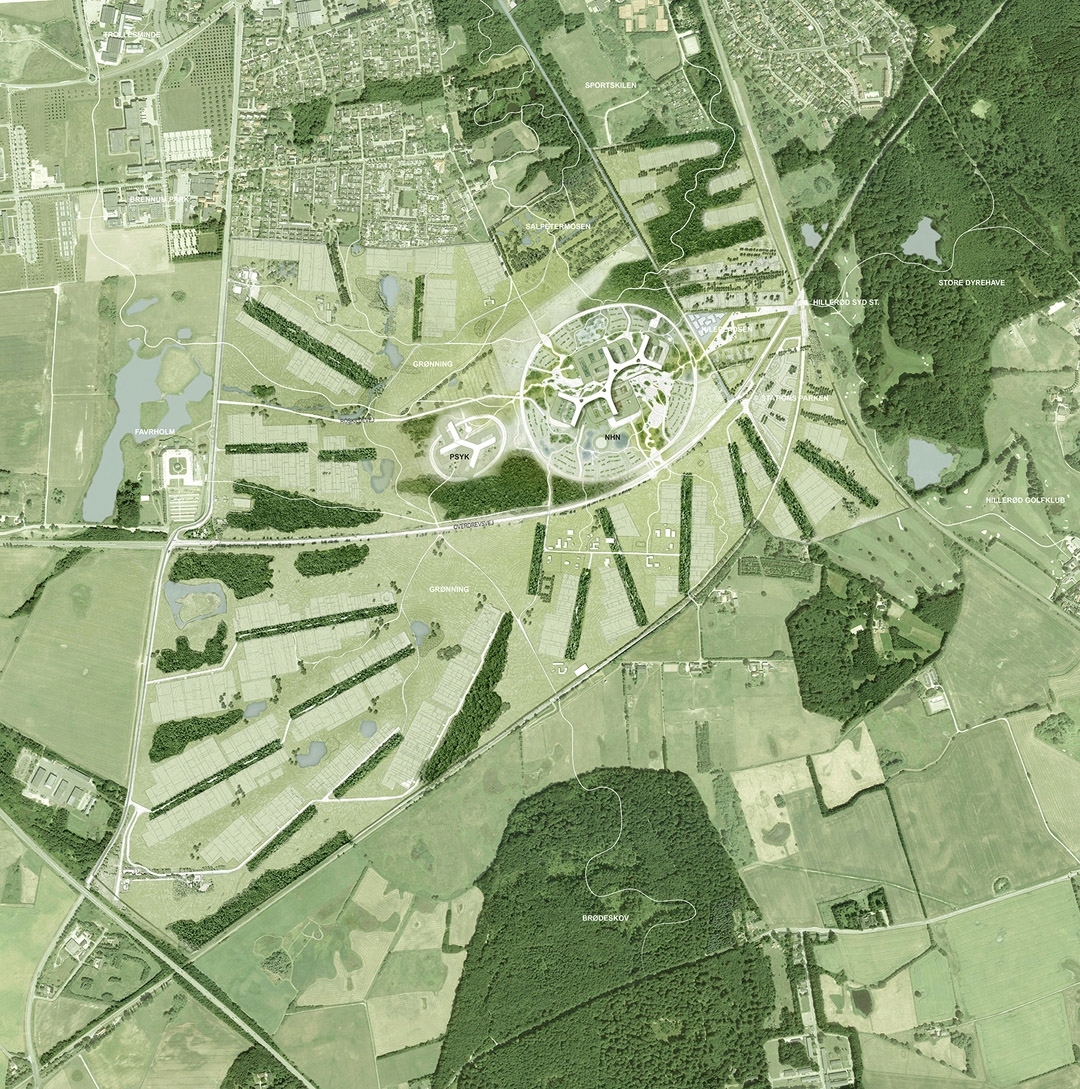

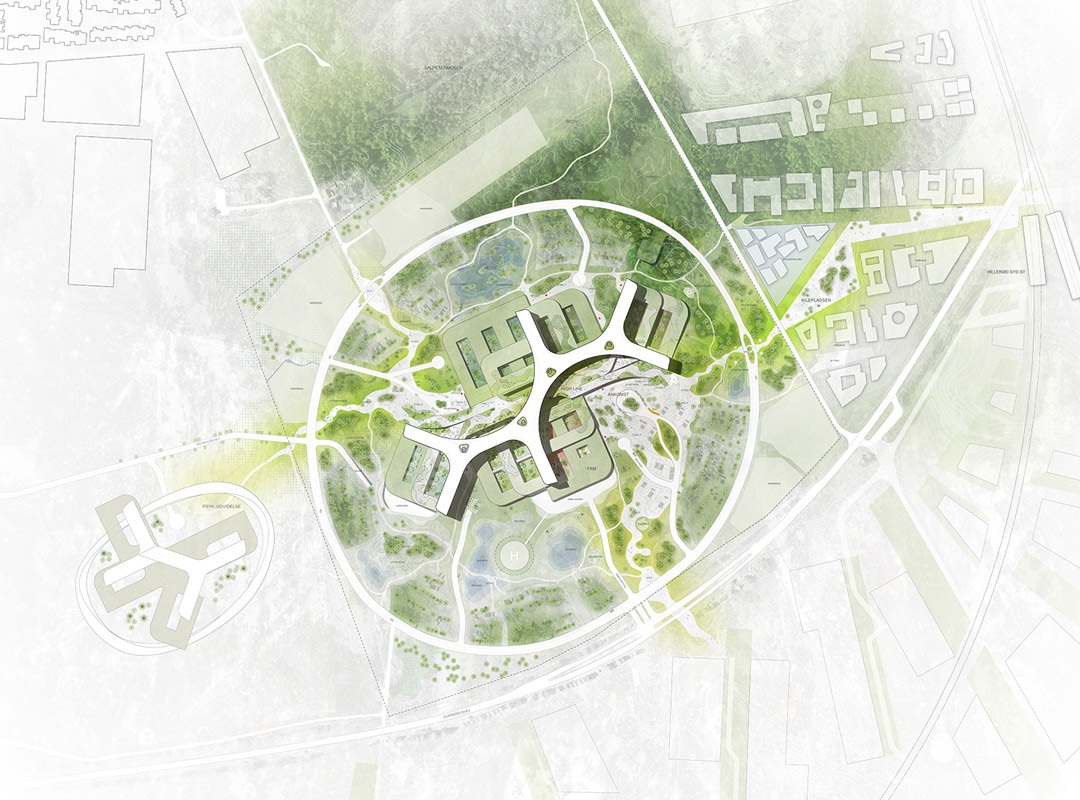

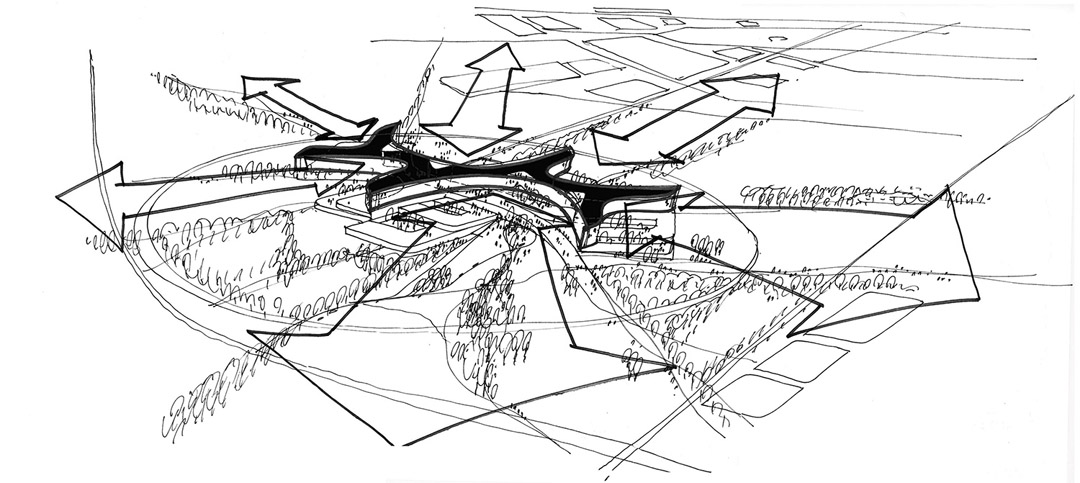

The complex is diminished in scale by dividing the building into two elongated curves that mark the entrances to the city of Hiller?d in the north, and to the new railway station and urban development in the southeast, thus forming an overall organization of the wards in a soft sinuous shape.

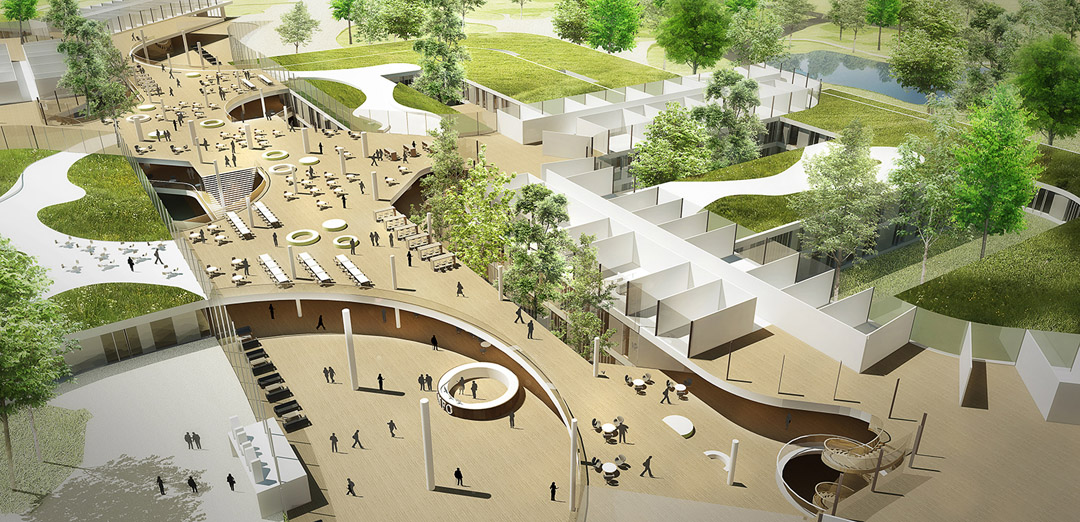

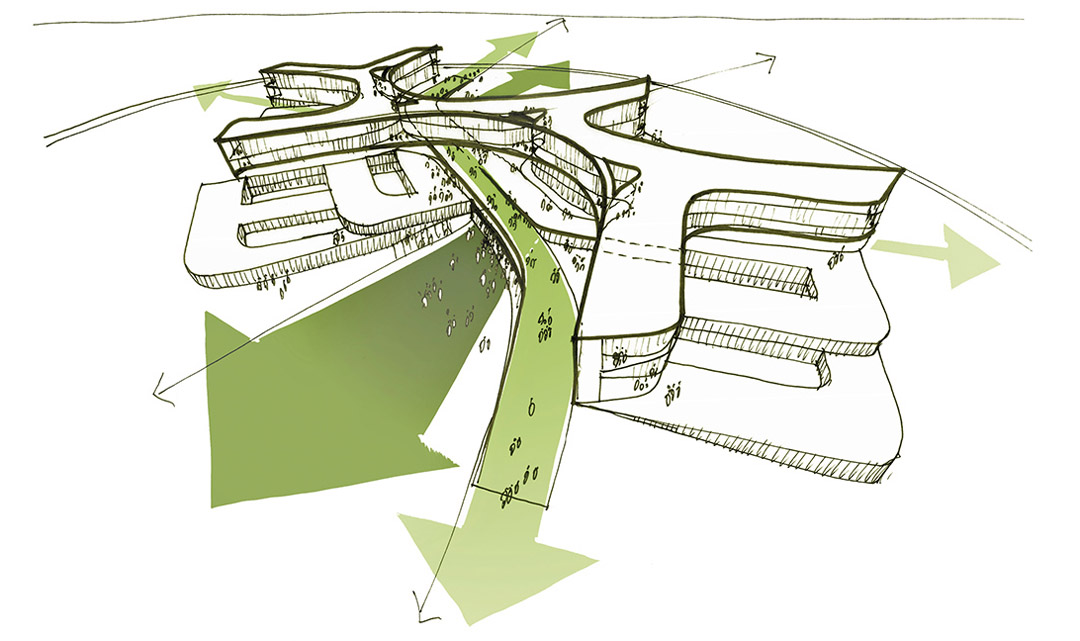

一条灵感来源于纽约绿色高线的公共花园长廊穿越复杂的医院，允许所有人访问医院，在欣赏享受美景的同时不影响病房隐私。A public garden promenade, inspired by New York’s green highline, leads into and right through the hospital complex, and makes the building open and democratically accessible to all citizens in the area: You can follow the path up to the roof and enjoy the view, without compromising the privacy of the patient rooms.

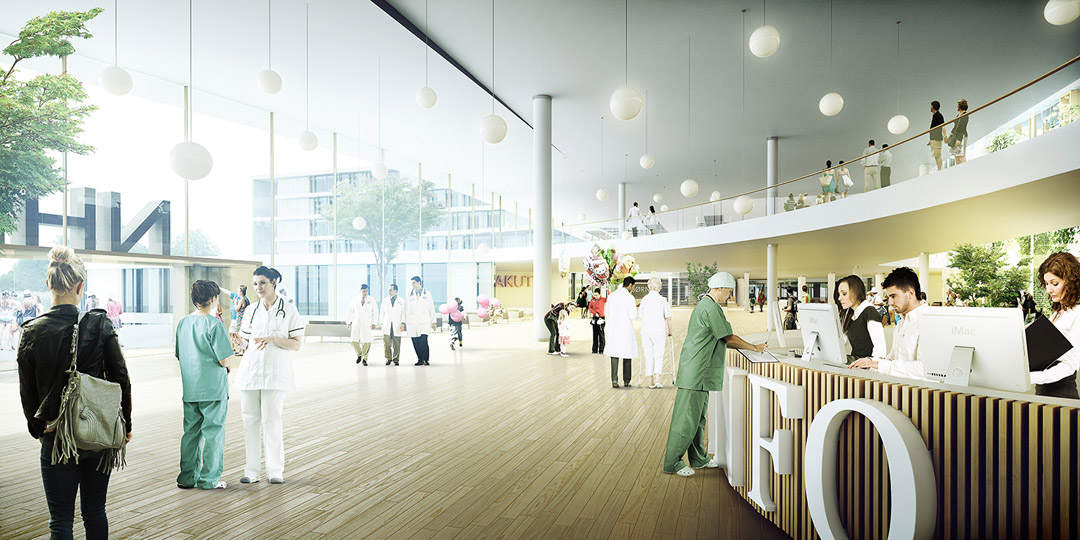

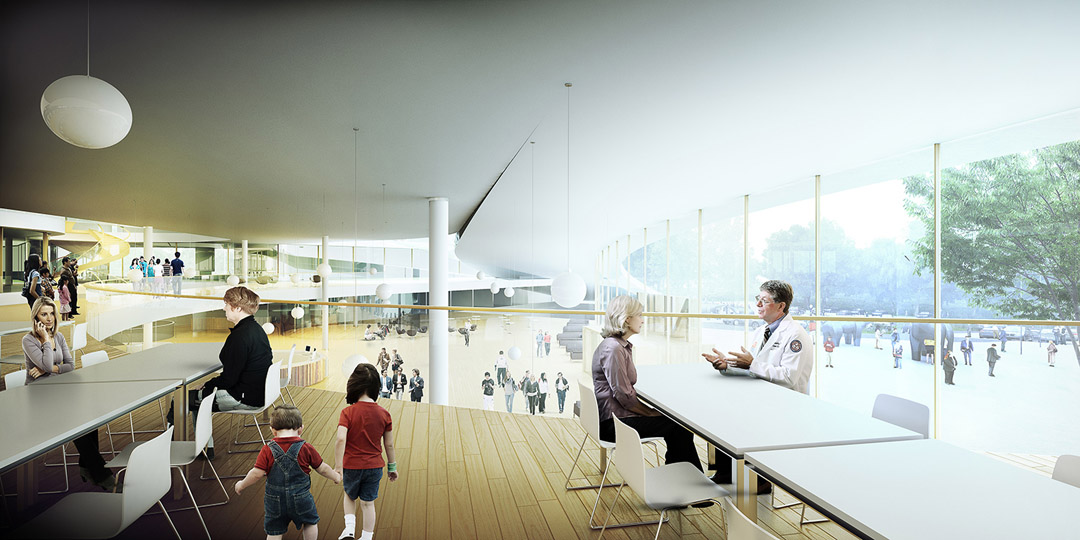

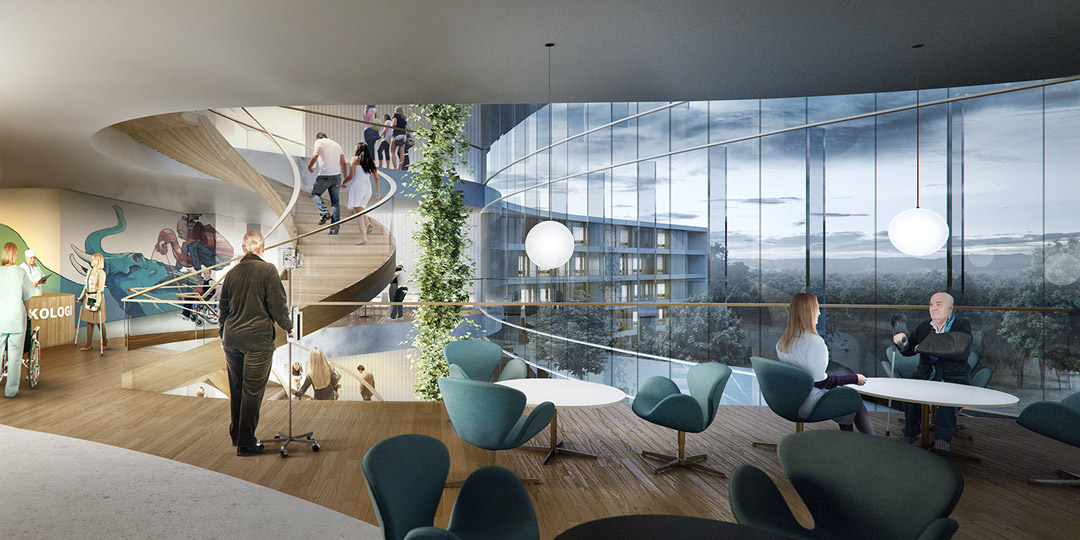

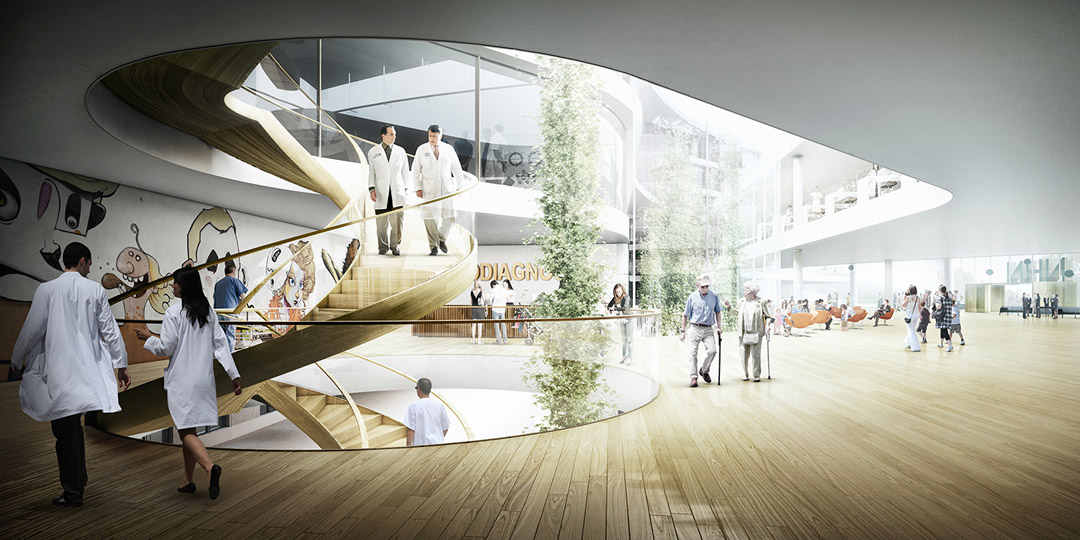

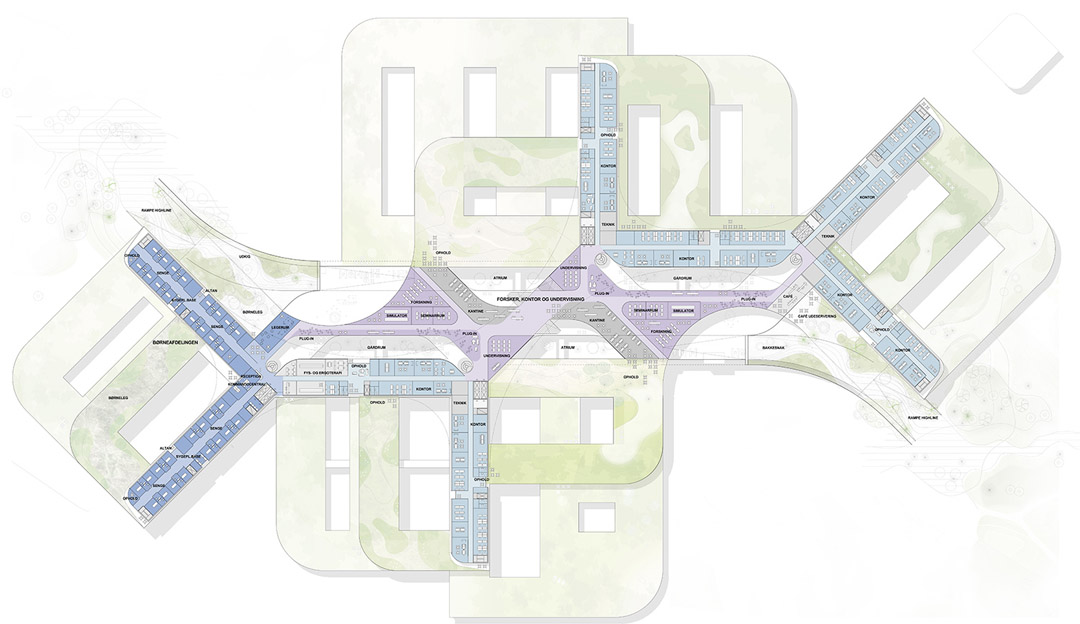

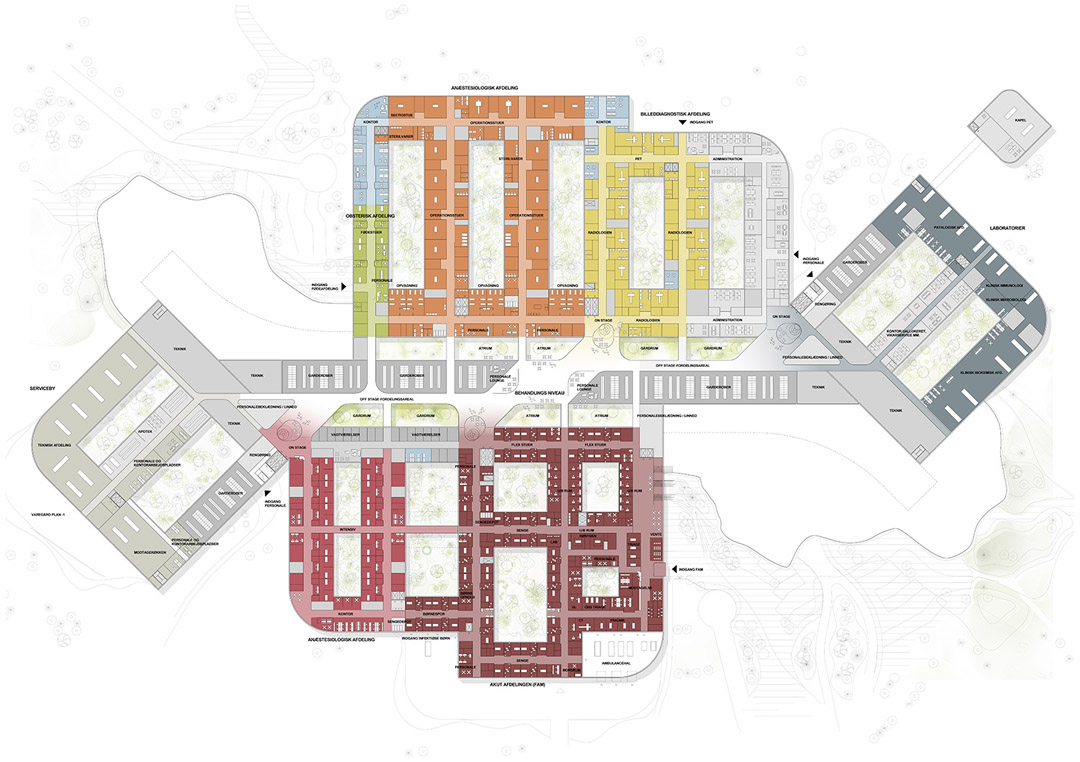

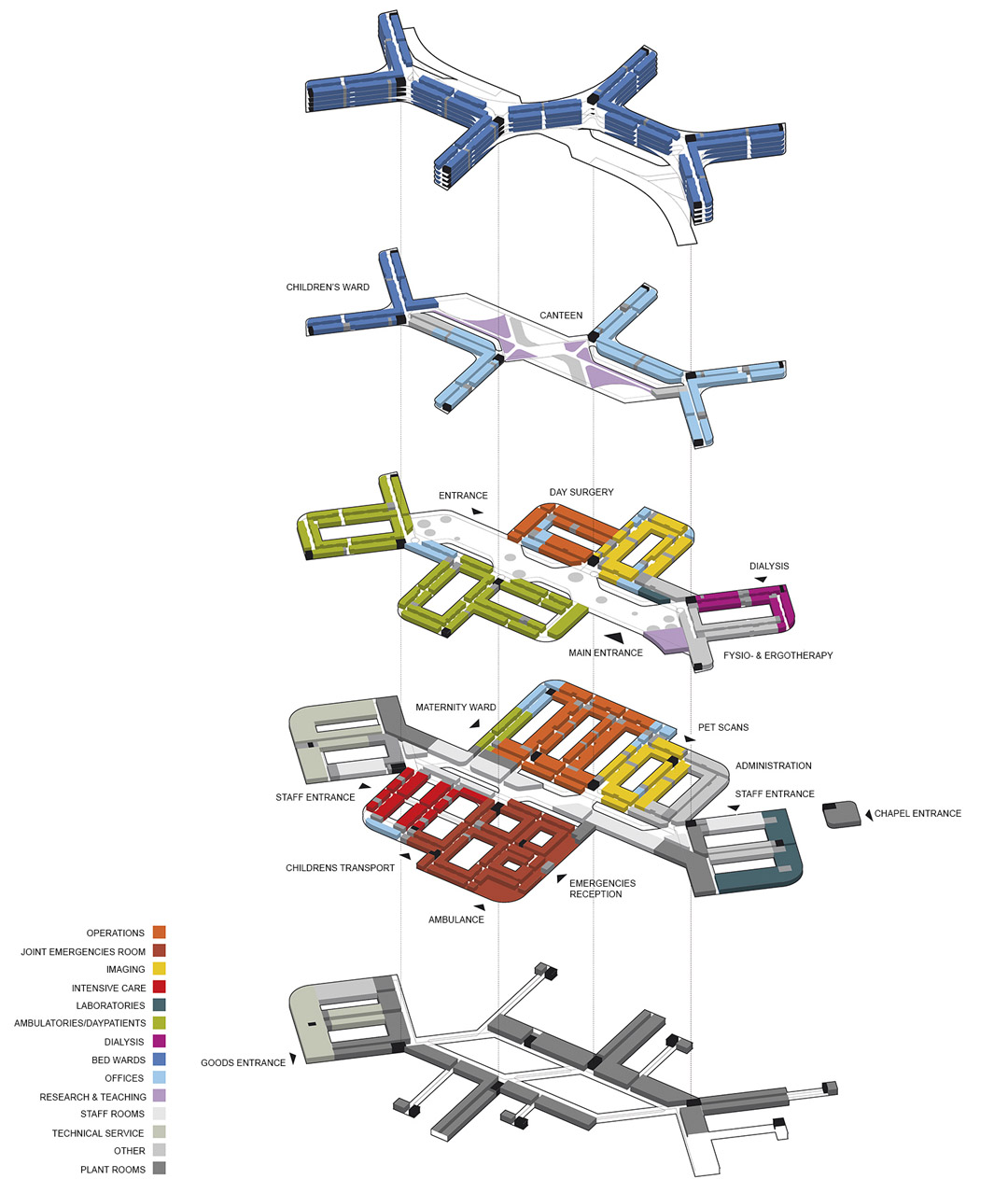

Inside, the unifying central lobby, or internal street, forms the focal point of the treatment floors – with the less intensive outpatient units located at the level of the main entrance, while the more intensive treatment units are located one floor below to create a higher degree of privacy. The internal integrates several squares with play spaces for children and an amphitheatre ramp, which can serve as a cultural meeting place or for research and teaching events.The hospital’s compact layout ensures maximum functionality for the staff, efficient logistics and short working distances. Focusing on efficient flows for employees ensures they have more time for patients and their relatives. The internal layout, with the double-height internal street and spacious vertical connections up to the bed wards above, is logical, clear and concise so that everyone can find their way around and feel safe and welcome.

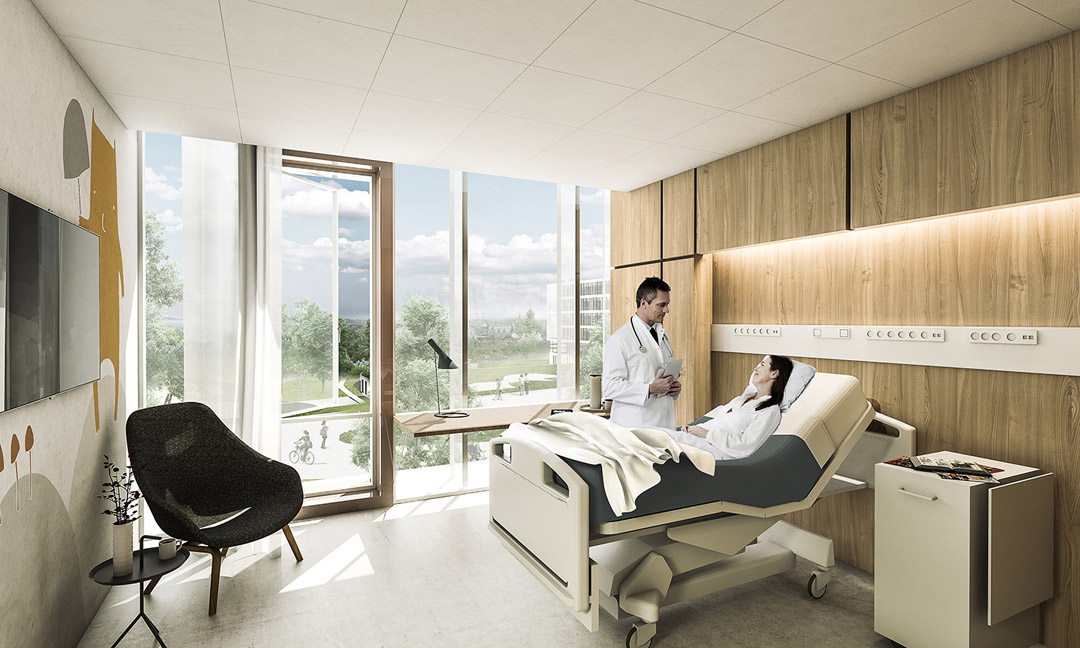

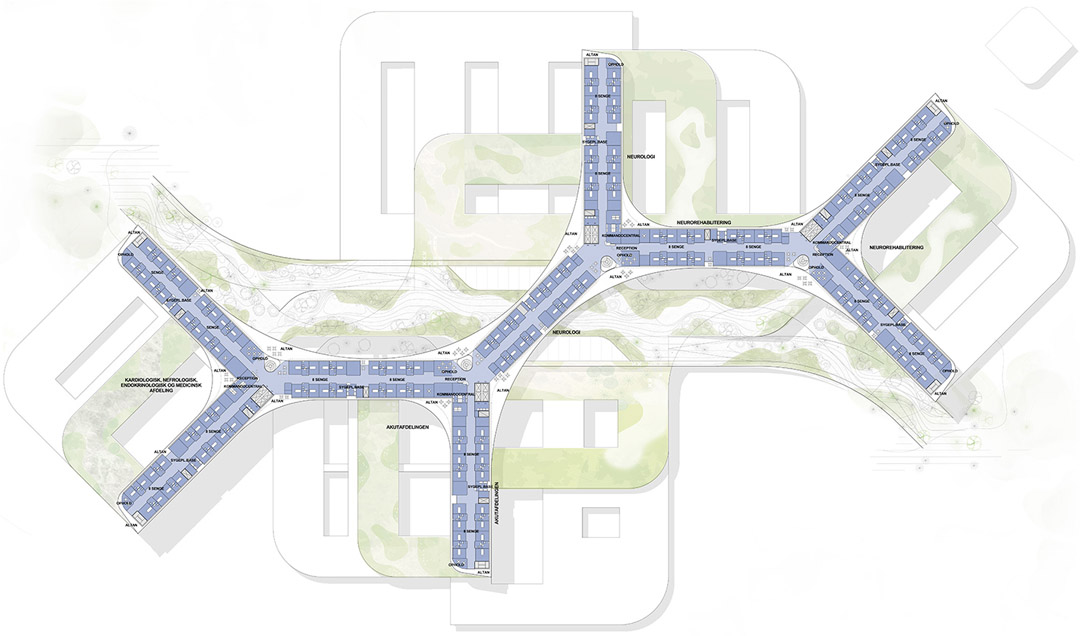

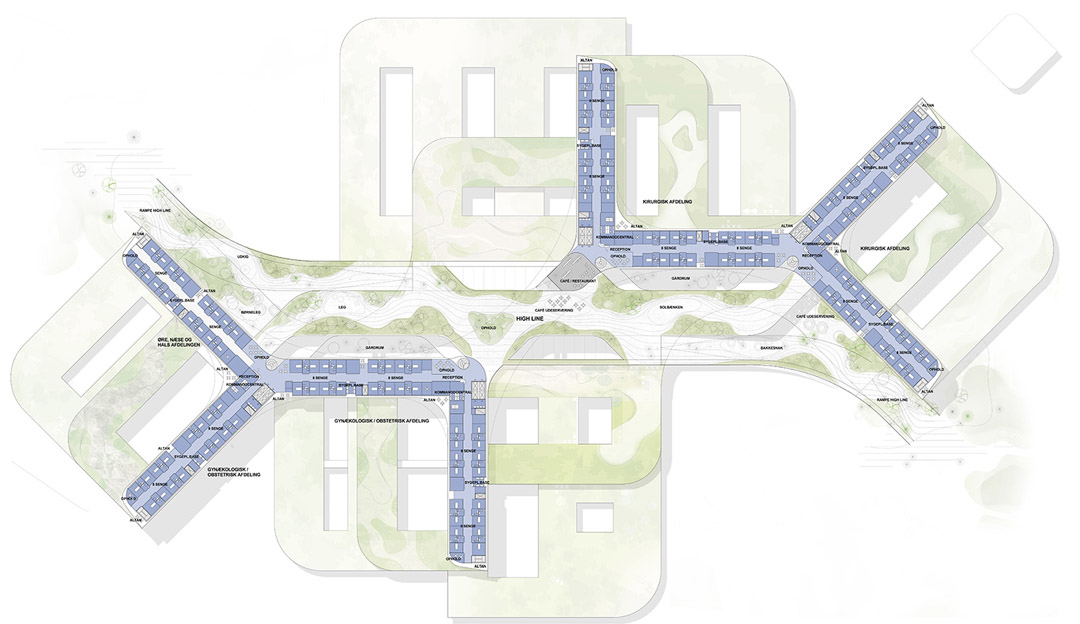

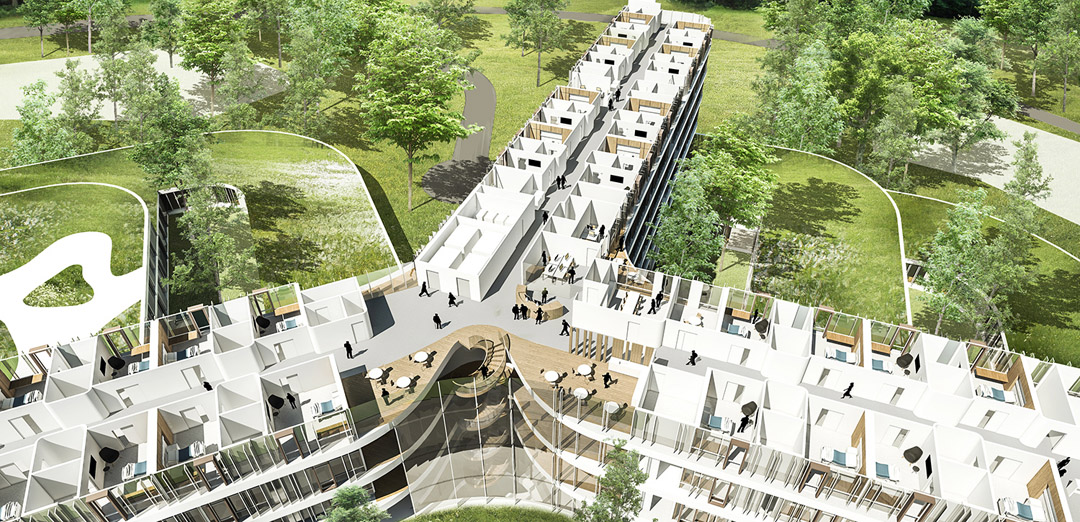

病房排布在中央街道的两侧，内部空间宽敞而简洁，用材选择自然朴实的材料，营造出与外面乡村景色和谐一致的氛围，给患者宾至如归的感受。All one-bed rooms have sweeping views of the countryside right from the beds, and each room focuses on a sense of homeliness with chalorous materials, such as wood, to create an atmosphere more reminiscent of a comfortable hotel room.
Client: Copenhagen Region
Address: Hiller?d, Denmark
Consortium: (Lead consultancy and copyright):
C.F. M?ller A/S (architects), Alectia A/S, Ramb?ll A/S (engineers)
项目来源: C.F. M?ller
