荷兰阿默斯福特的综合性文化建筑|Eemhuis | Neutelings Riedijk Architects

Eemhuis是荷兰阿默斯福特的综合性文化建筑,其集市图书馆、会展中心、文物档案中心和舞蹈、音乐及视觉艺术学校为一身。该建筑坐落在靠近市中心的城市重建区。

The Eemhuis combines a number of existing cultural institutes in the city of Amersfoort: the city library, the exposition center, the heritage
archives and a school for dance, music and visual arts. It is located on an urban redevelopment area close to the city center.

Eemhuis, Amersfoort, Neutelings Riedijk architecten

Eemhuis是文化场所的集合之地。城市公共领域从四面八方汇聚在这里。地面层设有封闭式的公共广场,广场处有一个大型的咖啡厅和多处通向各功能区的入口。地面层广场的旁边是会展中心,大的中心展厅一部分嵌入地下,两边是纵列的小型展览室。梯田式的图书馆从城市广场延伸而来,将人们引领至上面的主图书馆。图书馆在楼梯尽头散开成一个的巨大开放空间,这里书架林立、从阅读区和学习区能够观赏城市景观。盘旋在图书馆上端的是档案室,也是Eemhuis的“天花板”。最顶端的阁楼是艺术学校。艺术学校三个相互独立的悬臂式区域(戏剧&舞蹈、视觉艺术和音乐)如同加冕于建筑综合体上的三顶皇冠。

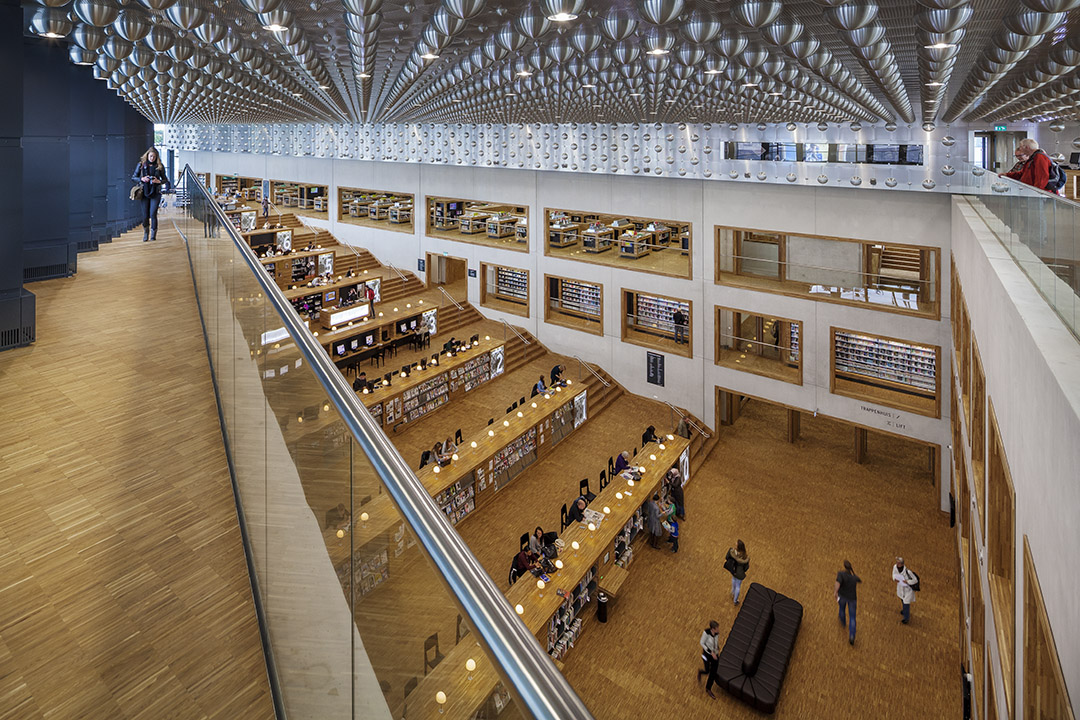

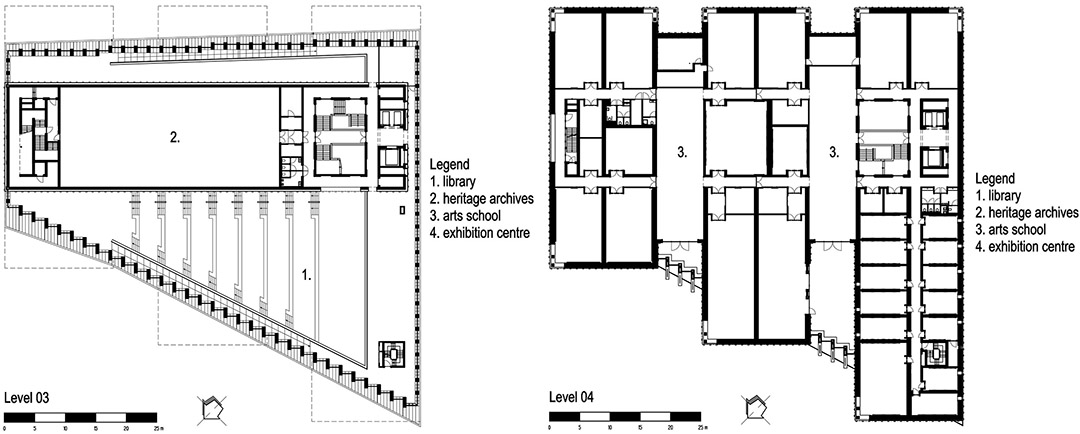

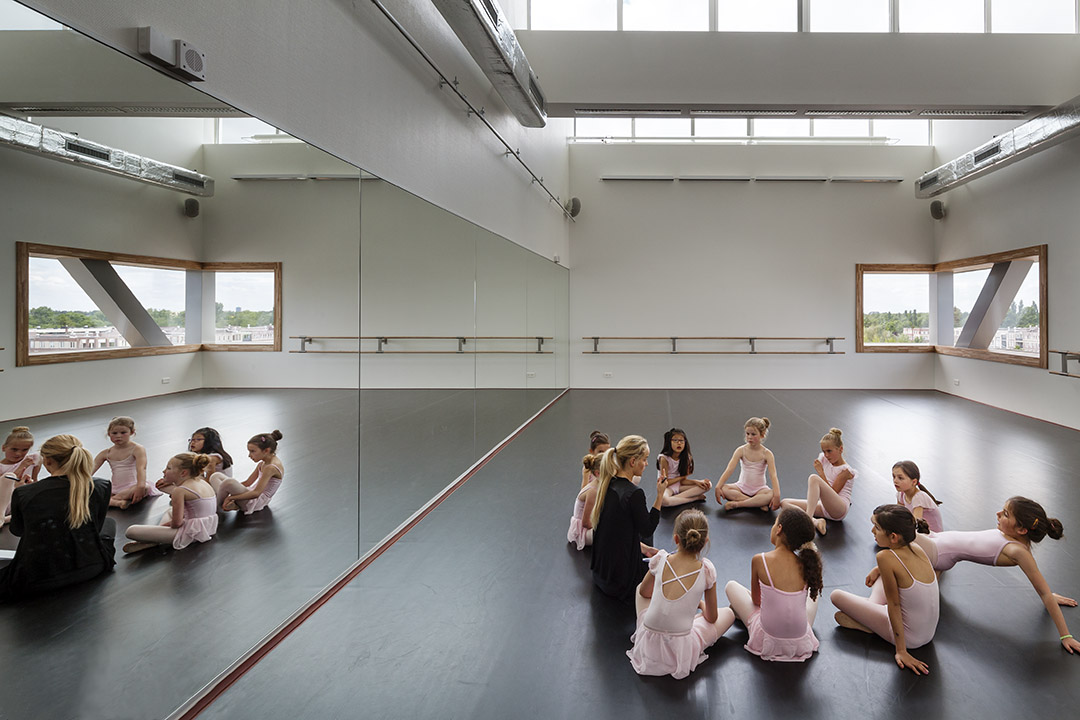

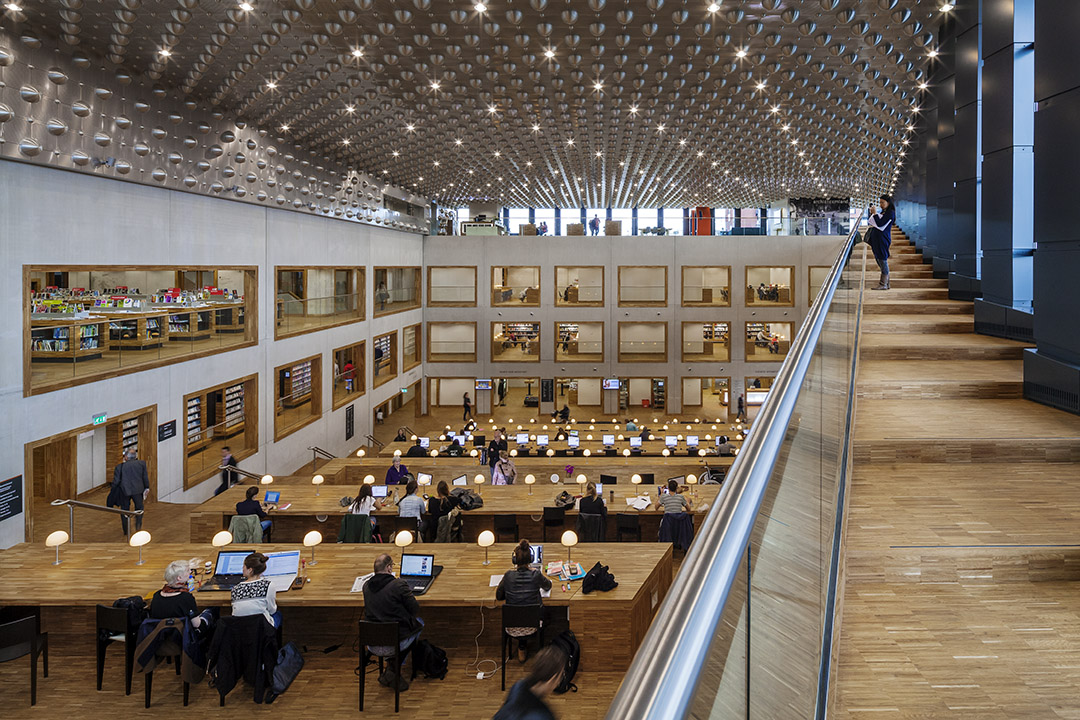

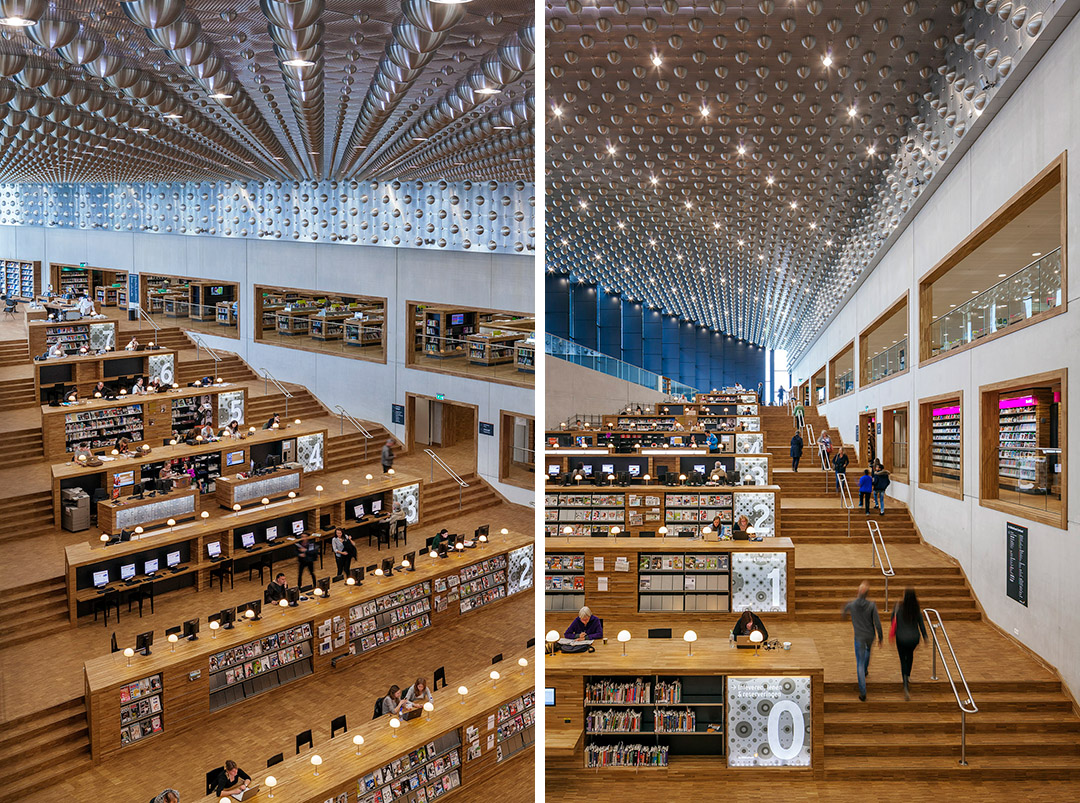

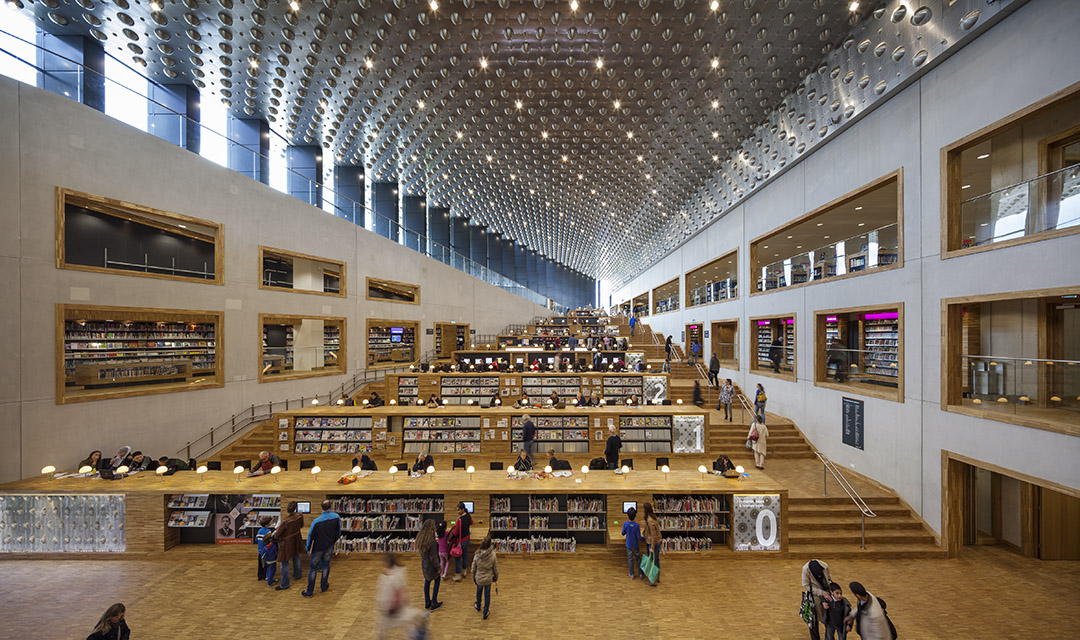

The building is organized as a stacking of the cultural programs. The public domain is continued into the interior of the building in all directions. At the ground floor, the public square becomes a covered plaza, with a grand café and entrances to the various functions. The exposition center is set directly off the square on the ground floor, with a large central exhibition hall that is half sunken in the ground and is surrounded by an enfilade of smaller exhibition rooms. The library is a plaza of stepped information terraces as a prolongation of the city square that brings the visitors up to the main library floor. On the top of the stairs the library spills into a vast open space with book stacks and reading and study areas overlooking the city. Above it hovers the archive volume that forms the ceiling of this space. The attic of the building houses the arts school. The three arts departments (theatre & dance, visual arts and music) are each expressed separately as cantilevered beams that crown the complex.

a-xun_2014-06-18_11-11-45

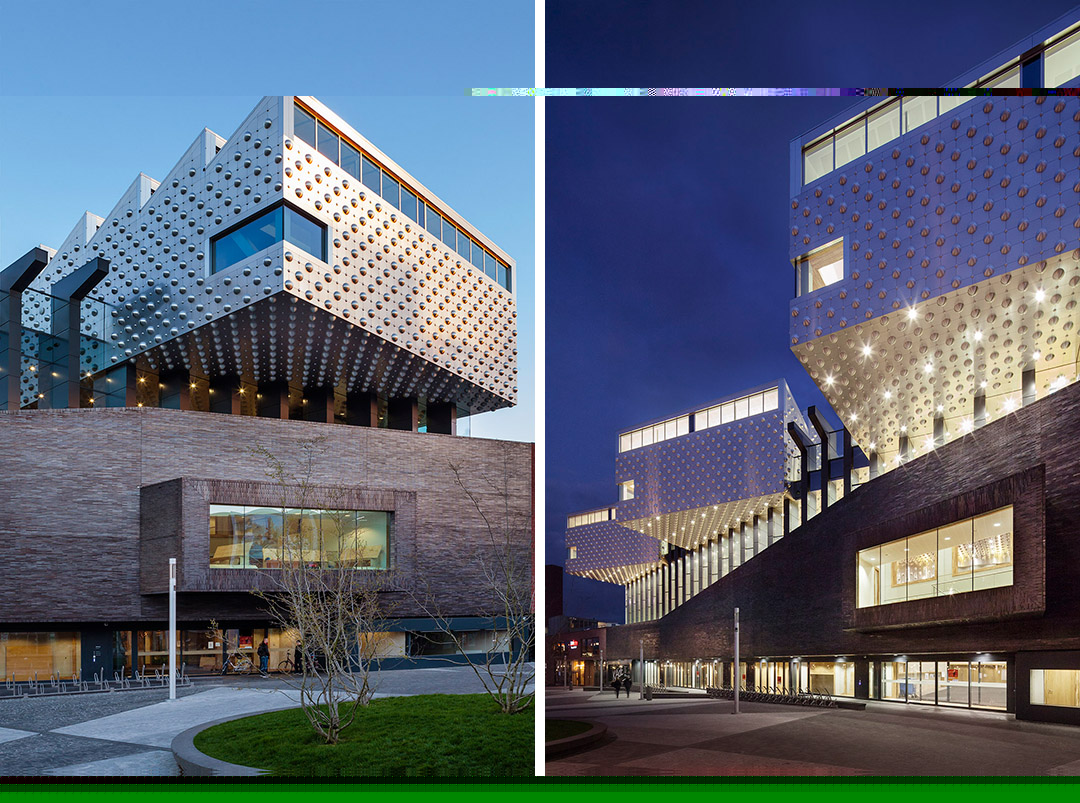

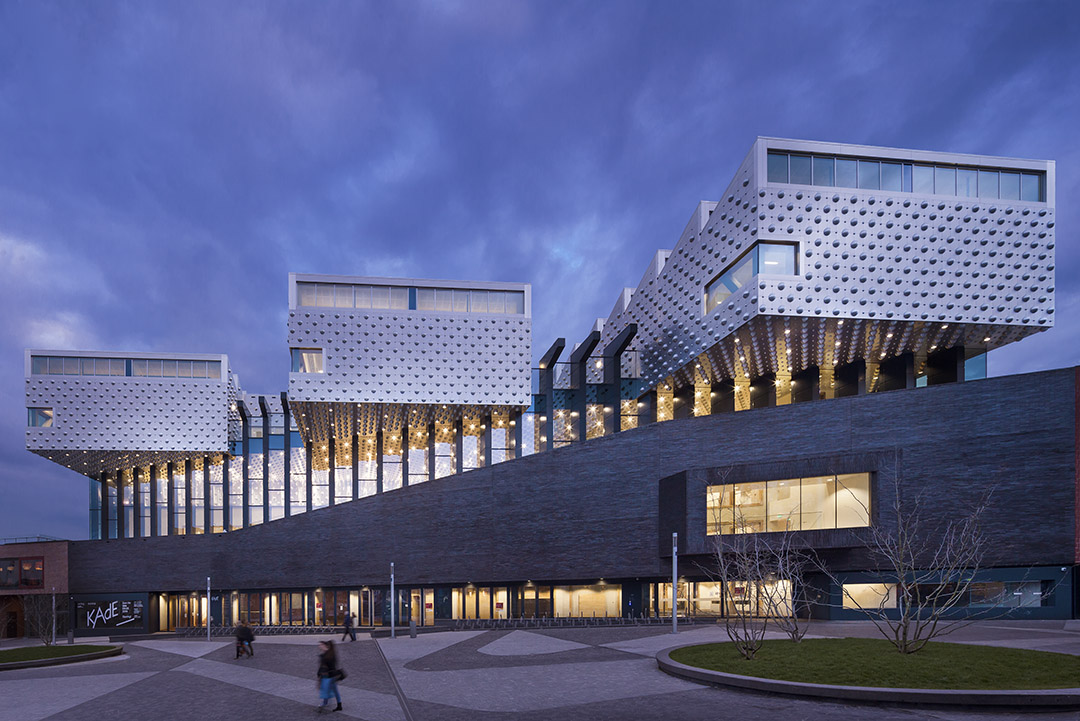

 根据总体规划,建筑的整个立面由三个部分组成。第一层的基座由30cm的加长型釉面砖筑成,强化了水平的线条感。二层由玻璃板构成,可以将光线引入建筑内部,提高透明度。“王冠”部分由半球体点缀的金属板制成,半球体的设计能有效减少悬臂体量受到北部风雨的侵蚀。

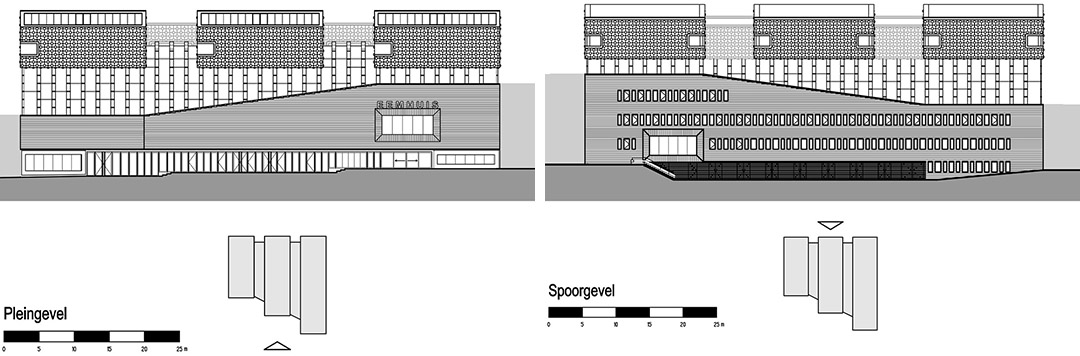

The façades are composed of a classical tripartite as imposed by the master plan. The plinth is made of 30 cm long elongated glazed bricks, reinforcingthe horizontal lining. The central part is made of glass plate which brings lights within and promotes transparency of the interior space. The crownof the building is made of metal panels with a dotted pattern of semi-spheres that enhance the alienating quality of the cantilevered volumes againstthe northern Dutch clouds.

Eemhuis, Amersfoort, Neutelings Riedijk architecten

Eemhuis, Amersfoort, Neutelings Riedijk architecten

Eemhuis, Amersfoort, Neutelings Riedijk architecten

a-xun_2014-06-18_11-11-43

Eemhuis, Amersfoort, Neutelings Riedijk architecten

Eemhuis, Amersfoort, Neutelings Riedijk architecten

a-xun_2014-06-18_11-12-03

Eemhuis, Amersfoort, Neutelings Riedijk architecten

PROJECT INFO
GENERAL
Programme Library, art gallery, the regional archives, school of arts
Surface area 16.000 m2
Location Eemplein, Amersfoort, The Netherlands
Client City of Amersfoort
Design 2006
Start construction 2011
Opening 2014

DESIGN TEAM
Architectural design Neutelings Riedijk Architects, Rotterdam, The Netherlands
Structural design ABT Adviesbureau voor Bouwtechniek bv., Delft, The Netherlands
Building physics DGMR Raadgevend Ingenieurs, Arnhem, The Netherlands
Installation design HE Adviseurs, Rotterdam, The Netherlands
Cost management BBN Adviseurs, Amsterdam, The Netherlands
General contactor Dura Vermeer Bouw bv., Hengelo, The Netherlands
Building site management & supervision Royal Haskoning DHV, Amersfoort, The Netherlands

PHOTO CREDITS
Models Neutelings Riedijk Architects, Rotterdam, The Netherlands
ArchImpact architectuurpresentaties, Rotterdam, The
Netherlands (urban model)
Photographs ScagliolaBrakkee © Neutelings Riedijk Architects, Rotterdam,The Netherlands

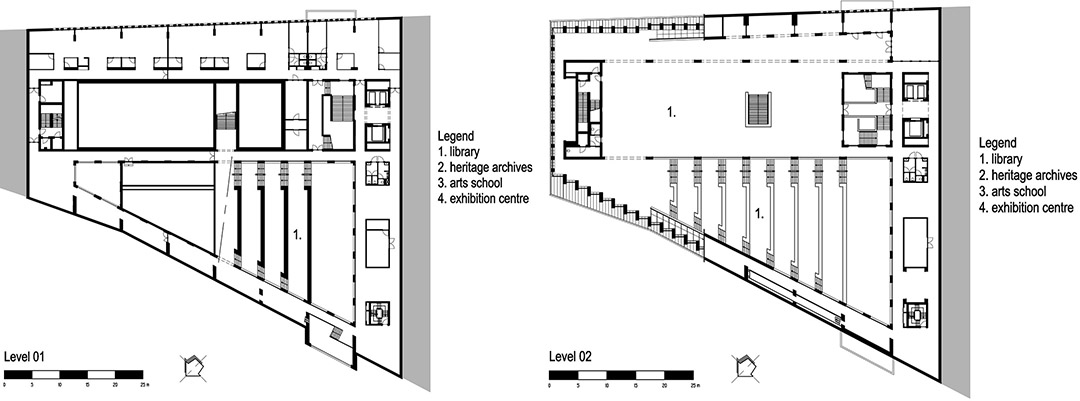

a-xun_2014-06-18_11-12-11

a-xun_2014-06-18_11-12-14

a-xun_2014-06-18_11-12-10

项目来源: Neutelings Riedijk Architects
